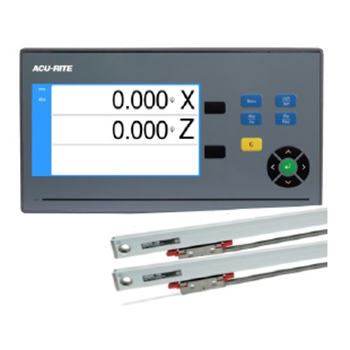

ACU-RITE T102-1036 Turning System 10 x 36″

Name: T102-1036 ACU-RITE Turning System 10 x 36" - Call 800-469-0132 or Buy Online
SKU: T102-1036
Price: 1968.74 USD
Availability: InStock

Product Code: T102-1036

MFGID: T102-1036

Brand: ACU-RITE

Range Inch: 10x36"

Range Millimeter: 250x900mm

Product Description

T102-1036 ACU-RITE DR102 Turning System – 2 Axes Turning: 250x900mm

The ACU-RITE T102-1036 DR102 Turning System – 2 Axes Turning has the following specifications:

Millimeter: 250x900mm

Inch: 10×36″

2 axes readout

5?m (.0002″) SENC 150 Precision Glass Scale with(4m) 13′ Armor Cables for lengths (1050mm) 42″ and shorter (6m) 19′ Armor Cables for lengths (1225mm) 48″ and longer

Readout bracketry

X, Y, and Z scale brackets

Note: Readout mounting brackets and scale brackets are included in the system list price. X and Z scale brackets must be selected and added as a line item for each system ordered.

Features:

Number of Axes: 3

Display: 7″ TFT Color

Data Interface: USB Type C

Feed Rate Display

Multiple Language Supports

Absolute/Incremental

Help Function

Zero Reset

Instant Inch/mm Conversion

Position-TracTM (Recalls last data after power loss) / RM

Counter Diagnostics

Encoder Input Linear only

Linear/Segmented Non-Linear Compensation upto ±99,999ppm

Day / Night (Display Mode)

Installation Guide

User Management

Dynamic Zoom / Axis Highlight

File Management (Import, Export)

System Information

Turning Specific Functions:

Instant Radius / Diameter Conversion

If this linear scales page does not have the specifications or information you are searching please visit the ACU-RITE company website. You can find their website by Clicking Here.

ACU-RITE DR102 Turning System – 2 Axes Turning

T102-0828 DR102 Turning System – 2 Axes Turning 200x700mm

T102-0830 DR102 Turning System – 2 Axes Turning 200x750mm

T102-0836 DR102 Turning System – 2 Axes Turning 200x900mm

T102-0840 DR102 Turning System – 2 Axes Turning 200x1000mm

T102-0842 DR102 Turning System – 2 Axes Turning 200x1050mm

T102-0848 DR102 Turning System – 2 Axes Turning 200x1225mm

T102-0852 DR102 Turning System – 2 Axes Turning 200x1325mm

T102-0854 DR102 Turning System – 2 Axes Turning 200x1375mm

T102-0860 DR102 Turning System – 2 Axes Turning 200x1525mm

T102-0865 DR102 Turning System – 2 Axes Turning 200x1625mm

T102-1036 DR102 Turning System – 2 Axes Turning 250x900mm
