ACU-RITE Linear ScalesACU-RITE T203-0620 Turning System 7 x 20″

acu-rite t203-0620 dro203 turning system 2 axes turning

ACU-RITE T203-0620 Turning System 7 x 20″

Name: T203-0620 ACU-RITE Turning System 7 x 20" - Call 800-469-0132 or Buy Online
SKU: T203-0620
Price: 2950.71 USD
Availability: InStock

Product Code: T203-0620

MFGID: T203-0620

Brand: ACU-RITE

Range Inch: 6x20"

Range Millimeter: 150x500mm

Product Description

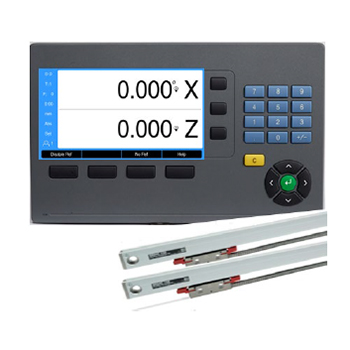

T203-0620 ACU-RITE DRO203 Turning System – 2 Axes Turning: 150x500mm

The ACU-RITE T203-0620 DRO203 Turning System – 2 Axes Turning has the following specifications:

Millimeter: 150x500mm

Inch: 06×20″

3 axes readout

5?m (.0002″) SENC 150 Precision Glass Scale with(4m) 13′ Armor Cables for lengths (1050mm) 42″ and shorter (6m) 19′ Armor Cables for lengths (1225mm) 48″ and longer

Readout bracketry

X, Y, and Z scale brackets

Note: Readout mounting brackets and scale brackets are included in the system list price. X and Z scale brackets must be selected and added as a line item for each system ordered.

Features:

Number of Axes: 3

Display: 7″ TFT Color

Data Interface: USB Type C

Job Clock (Stop Watch)

Feed Rate Display

Multiple Language Supports

Absolute/Incremental

Graphic Pos aid for Near Zero Warning with Graphics

Help Function

Tool Offsets / Diameter: 16

Preset and Zero Reset

4 Function Calculator/Trig Calculator/rpm

Instant Inch/mm Conversion

Position-TracTM (Recalls last data after power loss) / RM

Multiple Datum

Scale Factor (Allows for Part Shrinkage / Expansion)

Counter Diagnostics

Encoder Input Linear or Rotary

Linear/Segmented Non-Linear Compensation upto ±99,999ppm

Backlash Compensation

Day / Night (Display Mode)

Installation Guide

User Management

Dynamic Zoom / Axis Highlight

File Management (Import, Export)

Send Position (Screen Values via USB to PC w/SW v1.4.0 or higher)

System Information

Milling Specific Functions:

Bolt Hole (Circle and Linear) Pattern Calculations with Graphics

Centerline Calculation (workpiece zero, midpoints, and circle center)

Mill Line Function

Mill Arc Fucntion

Turning Specific Functions:

Lock Axis Feature (Establish tool offsets under load)

Instant Radius / Diameter Conversion

Taper Calculator & Taper Ratio

Vectoring

If this linear scales page does not have the specifications or information you are searching please visit the ACU-RITE company website. You can find their website by Clicking Here.
