ACU-RITE Linear ScalesACU-RITE T203-1252 Turning System: 12 x 50″

acu-rite t203-1252 dro203 turning system 2 axes turning

ACU-RITE T203-1252 Turning System: 12 x 50″

Name: T203-1252 ACU-RITE Turning System: 12 x 50" - Call 800-469-0132 or Buy Online
SKU: T203-1252
Price: 2778.12 USD
Availability: InStock

Product Code: T203-1252

MFGID: T203-1252

Brand: ACU-RITE

Inch: 12 x 52"

Millimeter: 300 x 1325mm

Request Quote

Product Description

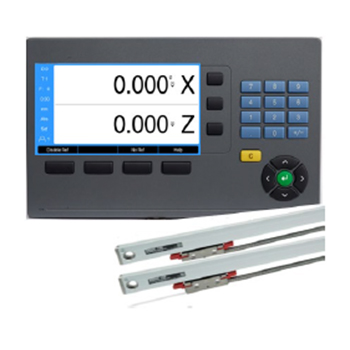

T203-1252 ACU-RITE DRO203 Turning System – 2 Axes Turning: 300x1325mm

The ACU-RITE T203-1252 DRO203 Turning System – 2 Axes Turning has the following specifications:

Millimeter: 300x1325mm

Inch: 12 x 52″

3 axes readout

5μm (.0002″) SENC 150 Precision Glass Scale with(4m) 13′ Armor Cables for lengths (1050mm) 42″ and shorter (6m) 19′ Armor Cables for lengths (1225mm) 48″ and longer

1μm (.00004″) SENC 150 Precision Glass Scale with (4m) 13′ Armor Cable (x axis)

Readout bracketry (ID 1292728-01)recommended)

X and Z scale brackets

Note: Readout mounting brackets and scale brackets are included in the system list price, but need to be selected and added as a line item for each system ordered.

Features:

Number of Axes: 3

Display: 7″ TFT Color

Data Interface: USB Type C

Job Clock (Stop Watch)

Feed Rate Display

Multiple Language Supports

Absolute/Incremental

Graphic Pos aid for Near Zero Warning with Graphics

Help Function

Tool Offsets / Diameter: 16

Preset and Zero Reset

4 Function Calculator/Trig Calculator/rpm

Instant Inch/mm Conversion

Position-TracTM (Recalls last data after power loss) / RM

Multiple Datum

Scale Factor (Allows for Part Shrinkage / Expansion)

Counter Diagnostics

Encoder Input Linear or Rotary

Linear/Segmented Non-Linear Compensation upto ±99,999ppm

Backlash Compensation

Day / Night (Display Mode)

Installation Guide

User Management

Dynamic Zoom / Axis Highlight

File Management (Import, Export)

Send Position (Screen Values via USB to PC w/SW v1.4.0 or higher)

System Information

If this linear scales page does not have the specifications or information you are searching please visit the ACU-RITE company website. You can find their website by Clicking Here.

ACU-RITE DRO203 Turning System – 2 Axes Turning

T203-1240 DRO203 Turning System – 2 Axes Turning 300x1000mm

T203-1242 DRO203 Turning System – 2 Axes Turning 300x1050mm

T203-1248 DRO203 Turning System – 2 Axes Turning 300x1225mm

T203-1252 DRO203 Turning System – 2 Axes Turning 300x1325mm

T203-1254 DRO203 Turning System – 2 Axes Turning 300x1375mm

T203-1260 DRO203 Turning System – 2 Axes Turning 300x1525mm

T203-1265 DRO203 Turning System – 2 Axes Turning 300x1625mm

T203-1272 DRO203 Turning System – 2 Axes Turning 300x1800mm

T203-1278 DRO203 Turning System – 2 Axes Turning 300x1950mm

T203-1284 DRO203 Turning System – 2 Axes Turning 300x2100mm

T203-1290 DRO203 Turning System – 2 Axes Turning 300x2250mm
