ACU-RITE T303-1684 Turning System: 16 x 84″
Product Code: T303-1684MFGID: T303-1684
Brand: ACU-RITE
Product Description

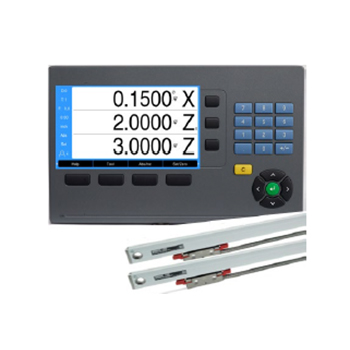

T303-1684 ACU-RITE DRO303 Turning System – 2 Axes Turning: 400x2100mm
The ACU-RITE T303-1684 DRO303 Turning System – 2 Axes Turning has the following specifications:
- Millimeter: 400x2100mm
- Inch: 16 x 84″
- 3 axes readout
- 5μm (.0002″) SENC 150 Precision Glass Scale with(4m) 13′ Armor Cables for lengths (1050mm) 42″ and shorter (6m) 19′ Armor Cables for lengths (1225mm) 48″ and longer
- 1μm (.00004″) SENC 150 Precision Glass Scale with (4m) 13′ Armor Cable (x axis)
- Readout bracketry (ID 1292728-01)recommended)
- X and Z scale brackets
Note: Readout mounting brackets and scale brackets are included in the system list price, but need to be selected and added as a line item for each system ordered.
Features:
- Number of Axes: 3 or 4
- Display: 7″ TFT Color
- Data Interface: USB Type C
- Job Clock (Stop Watch)
- Feed Rate Display
- Multiple Language Supports
- Absolute/Incremental
- Graphic Pos aid for Near Zero Warning with Graphics
- Help Function
- Tool Offsets / Diameter: 100
- Preset and Zero Reset
- 4 Function Calculator/Trig Calculator/rpm
- Instant Inch/mm Conversion
- Position-TracTM (Recalls last data after power loss) / RM
- Advanced Skew Compensation
- Multiple Datum
- Multiple Display Views: DRO 1 & 2 & 3
- Part Program Storage (Import, Export) 10
- Scale Factor (Allows for Part Shrinkage / Expansion)
- Counter Diagnostics
- Encoder Input Linear or Rotary
- Linear/Segmented Non-Linear Compensation upto ±99,999ppm
- Backlash Compensation
- Remote Switch allows data output, remote zero, and next step
- Measured Value Out allows data to be output when probing
- I/O (6 Input / 10 Output) Option
- Day / Night (Display Mode)
- Installation Guide
- User Management
- Dynamic Zoom / Axis Highlight
- File Management (Import, Export)
- Send Position (Screen Values via USB to PC w/SW v1.4.0 or higher)
- System Information
