Mitutoyo Linear ScalesMitutoyo 539-805N ABS AT715 Slim Spar Type Linear Scale: 12″/300mm

mitutoyo 539-805n abs at715 slim spar type linear scale: 12″/300mm

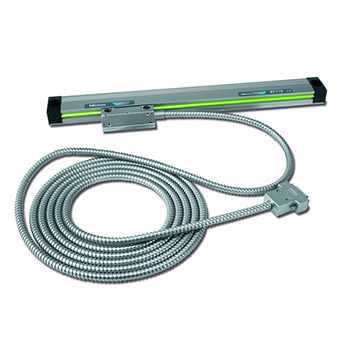

Mitutoyo 539-805N ABS AT715 Slim Spar Type Linear Scale: 12″/300mm

Product Code: 539-805N

MFGID: 539-805N

Brand: Mitutoyo

Effective range L0 inch/mm: 12"/300mm

Signal cable length: 3.5M

Product Description

539-805N Mitutoyo ABS AT715 Slim Spar Type Linear Scale – Series 539: 12″/300mm

The Mitutoyo 539-805N ABS AT715 Slim Spar Type Linear Scale – Series 539 has the following specifications:

Effective range L0 inch/mm: 12″/300mm
Signal cable length: 3.5M
Accuracy: 100 to 500 mm ±5 µm,600 to 1800 mm ±7 µm,2000 to 3000 mm ±10 µm
Max. drive speed: 50 m/min
Signal period: 20 µm
Resolution: 0,001 / 0,005 (switchable via Counter)

Features:

Electromagnetic induction principle means scales are unaffected by contamination.
Absolute scales have eliminated the need for origin restoration and drastically reduced power consumption.
Suitable for milling machines, XY tables, jigs, etc.

If this linear scales page does not have the specifications or information you are searching please visit the Mitutoyo company website. You can find their website by Clicking Here.

Mitutoyo ABS AT715 Slim Spar Type Linear Scale – Series 539

539-801N ABS AT715 Slim Spar Type Linear Scale – Series 539 4″/100mm
539-802N ABS AT715 Slim Spar Type Linear Scale – Series 539 6″/150mm
539-803N ABS AT715 Slim Spar Type Linear Scale – Series 539 8″/200mm
539-804N ABS AT715 Slim Spar Type Linear Scale – Series 539 10″/250mm
539-805N ABS AT715 Slim Spar Type Linear Scale – Series 539 12″/300mm
539-806N ABS AT715 Slim Spar Type Linear Scale – Series 539 14″/350mm
539-807N ABS AT715 Slim Spar Type Linear Scale – Series 539 16″/400mm
539-808N ABS AT715 Slim Spar Type Linear Scale – Series 539 18″/450mm
539-809N ABS AT715 Slim Spar Type Linear Scale – Series 539 20″/500mm
539-811N ABS AT715 Slim Spar Type Linear Scale – Series 539 24″/600mm
539-813N ABS AT715 Slim Spar Type Linear Scale – Series 539 28″/700mm
539-814N ABS AT715 Slim Spar Type Linear Scale – Series 539 30″/750mm
539-815N ABS AT715 Slim Spar Type Linear Scale – Series 539 32″/800mm
539-816N ABS AT715 Slim Spar Type Linear Scale – Series 539 36″/900mm
539-817N ABS AT715 Slim Spar Type Linear Scale – Series 539 40″/1000mm
539-818N ABS AT715 Slim Spar Type Linear Scale – Series 539 44″/1100mm
539-819N ABS AT715 Slim Spar Type Linear Scale – Series 539 48″/1200mm
539-820N ABS AT715 Slim Spar Type Linear Scale – Series 539 52″/1300mm
539-821N ABS AT715 Slim Spar Type Linear Scale – Series 539 56″/1400mm
539-822N ABS AT715 Slim Spar Type Linear Scale – Series 539 60″/1500mm
539-823N ABS AT715 Slim Spar Type Linear Scale – Series 539 64″/1600mm
539-824N ABS AT715 Slim Spar Type Linear Scale – Series 539 68″/1700mm
539-825N ABS AT715 Slim Spar Type Linear Scale – Series 539 72″/1800mm
539-860N ABS AT715 Slim Spar Type Linear Scale – Series 539 80″/2000mm
539-861N ABS AT715 Slim Spar Type Linear Scale – Series 539 88″/2200mm
539-862N ABS AT715 Slim Spar Type Linear Scale – Series 539 96″/2400mm
539-863N ABS AT715 Slim Spar Type Linear Scale – Series 539 100″/2500mm
539-864N ABS AT715 Slim Spar Type Linear Scale – Series 539 104″/2600mm
539-865N ABS AT715 Slim Spar Type Linear Scale – Series 539 112″/2800mm
539-866N ABS AT715 Slim Spar Type Linear Scale – Series 539 120″/3000mm
