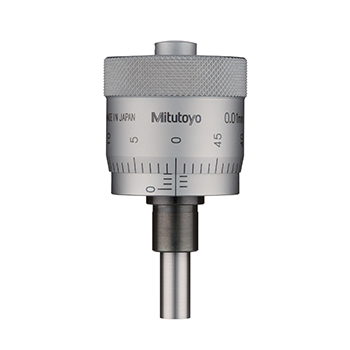

Mitutoyo 148-311 Large Thimble Micrometer Head: 0-13mm
Product Code: 148-311MFGID: 148-311
Brand: Mitutoyo
Product Description
148-311 Mitutoyo Micrometer Head Large Thimble Diameter for Easy Reading: 0-13mm
The Mitutoyo 148-311 large thimble micrometer head has the following specifications:
- Range: 0-13mm
- Graduations: .01mm
- Accuracy: +/- .002mm
- Stem Diameter: 9.5mm
- Stem: Plain
- Spindle Face: Flat
- Thimble Diameter: 29mm
Features:
- Easy reading due to the large thimble diameter. (Three types of thimble diameters can be selected.)
- Styles available with either a plain stem or with clamp nut
General Specifications:
- Spindle Pitch: .025″
- Spindle Face: Flat of SKS3 (more than HRC60), Lapped
- Scale Surface: Hard-chrome plating
- Fixture Thickness for Clamp Nut: 6mm
Mitutoyo Micrometer Heads Large Diameter for Easy Reading:
Plain Stem
- 148-301 Large Thimble Diameter Micrometer Head: 0-6.5mm (15mm Thimble Diameter)
- 148-303 Large Thimble Diameter Micrometer Head: 0-6.5mm (20mm Thimble Diameter)
- 148-305 Large Thimble Diameter Micrometer Head: 0-6.5mm (29mm Thimble Diameter)
- 148-307 Large Thimble Diameter Micrometer Head: 0-13mm (15mm Thimble Diameter)
- 148-309 Large Thimble Diameter Micrometer Head: 0-13mm (20mm Thimble Diameter)
- 148-311 Large Thimble Diameter Micrometer Head: 0-13mm (29mm Thimble Diameter)
With Clamp Nut
- 148-302 Large Thimble Diameter Micrometer Head: 0-6.5mm (15mm Thimble Diameter)
- 148-304 Large Thimble Diameter Micrometer Head: 0-6.5mm (20mm Thimble Diameter)
- 148-306 Large Thimble Diameter Micrometer Head: 0-6.5mm (29mm Thimble Diameter)
- 148-308 Large Thimble Diameter Micrometer Head: 0-13mm (15mm Thimble Diameter)
- 148-310 Large Thimble Diameter Micrometer Head: 0-13mm (20mm Thimble Diameter)
- 148-312 Large Thimble Diameter Micrometer Head: 0-13mm (29mm Thimble Diameter)
Plain Stem
- 148-351 Large Thimble Diameter Micrometer Head: 0-.250″ (.590″ Thimble Diameter)
- 148-353 Large Thimble Diameter Micrometer Head: 0-.250″ (.790″ Thimble Diameter)
- 148-355 Large Thimble Diameter Micrometer Head: 0-.250″ (1.14″ Thimble Diameter)
- 148-357 Large Thimble Diameter Micrometer Head: 0-.500″ (.590″ Thimble Diameter)
- 148-359 Large Thimble Diameter Micrometer Head: 0-.500″ (.790″ Thimble Diameter)
- 148-361 Large Thimble Diameter Micrometer Head: 0-.500″ (1.14″ Thimble Diameter)
With Clamp Nut
- 148-352 Large Thimble Diameter Micrometer Head: 0-.250″ (.590″ Thimble Diameter)
- 148-354 Large Thimble Diameter Micrometer Head: 0-.250″ (.790″ Thimble Diameter)
- 148-356 Large Thimble Diameter Micrometer Head: 0-.250″ (1.14″ Thimble Diameter)
- 148-358 Large Thimble Diameter Micrometer Head: 0-.500″ (.590″ Thimble Diameter)
- 148-360 Large Thimble Diameter Micrometer Head: 0-.500″ (.790″ Thimble Diameter)
- 148-362 Large Thimble Diameter Micrometer Head: 0-.500″ (1.14″ Thimble Diameter)
