  • Product Code: #151-225

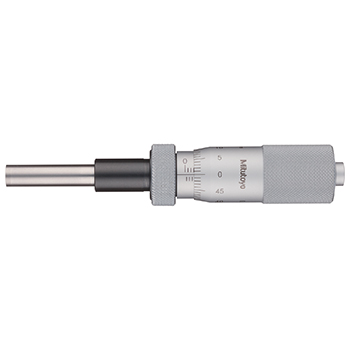

    Micrometer Head - Common Type in Middle Size w/ 8mm Spindle # 151-225

    Range: 0-25mm

    Graduations: 0.01mm

    Price: $133.00 $114.38
    Lowest Price Guaranteed
    Quantity

    Product Description

    151-225 Mitutoyo Micrometer Head Common Type in Middle Size w/ 8mm Spindle: 0-25mm

    The Mitutoyo 151-225 Micrometer Head - Common Type in Middle Size has the following specifications:

    • Range: 0-25mm
    • Graduations: .01mm
    • Accuracy: +/- .002mm
    • Stem Diameter: 12mm
    • Spindle Diameter: 8mm
    • Stem: Plain
    • Spindle Face: Flat (carbide tip)
    • Notes: w/o Ratchet Stop, With Spindle Lock

    Features:

    • 8mm diameter spindle for heavy duty use.
    • Ratchet stop for constant force.
    • Carbide tipped measuring face.

    Specifications:

    • Available Graduations: .01mm, .001mm, .001", .0001"
    • Spindle Pitch: 0.5mm
    • Spindle Face: Flat with carbide tip (more than HRA90) lapped surface
    • Scale Surface: Hard-chrome plating
    • Fixture Thickness for Clamp Nut: 25.5mm

    Mitutoyo Micrometer Heads - Common Type in Middle Size w/ 8mm Spindle Diameter:

    Plain Stem - Metric

    • 151-224 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm
    • 151-214 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (Spindle Lock)
    • 151-222 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (w/ Venier .001mm)
    • 151-212 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (w/ Venier .001mm, Spindle Lock)
    • 151-227 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (w/o Ratchet Stop)
    • 151-225 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (w/o Ratchet Stop, Spindle Lock)
    • 151-256 Micrometer Head Middle Size w/ 8mm Spindle: 0-50mm
    • 151-260 Micrometer Head Middle Size w/ 8mm Spindle: 0-50mm (w/o Ratchet Stop)

    With Clamp Nut - Metric

    • 151-223 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm
    • 151-213 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (Spindle Lock)
    • 151-221 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (w/ Venier .001mm)
    • 151-211 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (w/ Venier .001mm, Spindle Lock)
    • 151-228 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (w/o Ratchet Stop)
    • 151-226 Micrometer Head Middle Size w/ 8mm Spindle: 0-25mm (w/o Ratchet Stop, Spindle Lock)
    • 151-255 Micrometer Head Middle Size w/ 8mm Spindle: 0-50mm
    • 151-259 Micrometer Head Middle Size w/ 8mm Spindle: 0-50mm (w/o Ratchet Stop)

    Plain Stem - Inch

    • 151-240 Micrometer Head Middle Size w/ 8mm Spindle: 0-1"
    • 151-238 Micrometer Head Middle Size w/ 8mm Spindle: 0-1" (w/ Venier .0001")
    • 151-243 Micrometer Head Middle Size w/ 8mm Spindle: 0-1" (w/ Venier .0001", Spindle Lock)
    • 151-241 Micrometer Head Middle Size w/ 8mm Spindle: 0-1" (w/o Ratchet Stop, Spindle Lock)
    • 151-272 Micrometer Head Middle Size w/ 8mm Spindle: 0-2"

    With Clamp Nut - Inch

    • 151-239 Micrometer Head Middle Size w/ 8mm Spindle: 0-1"
    • 151-237 Micrometer Head Middle Size w/ 8mm Spindle: 0-1" (w/ Venier .0001")
    • 151-244 Micrometer Head Middle Size w/ 8mm Spindle: 0-1" (w/ Venier .0001", Spindle Lock)
    • 151-242 Micrometer Head Middle Size w/ 8mm Spindle: 0-1" (w/o Ratchet Stop, Spindle Lock)
    • 151-271 Micrometer Head Middle Size w/ 8mm Spindle: 0-2"
  •
