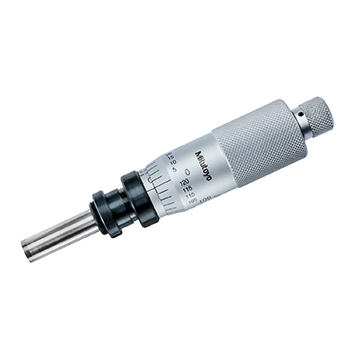

Mitutoyo 110-112 Micrometer Head Differential Screw: 0-.05″
Product Code: 110-112MFGID: 110-112
Brand: Mitutoyo
Product Description
110-112 Mitutoyo Micrometer Head Differential Screw Translator Type: 0-.05″
The Mitutoyo 110-112 Micrometer Head – Differential Screw Translator (Extra-fine Feeding) Type has the following specifications:
- Range: 0-.05″
- Graduations: .000005″
- Accuracy: +/- .0002″ / +/- .00006″
- Stem Diameter: .500″
- Stem: With Clamp Nut
- Spindle Face: Spherical
Features:
- Differential movements of spindle threads and units allow fine spindle feeding (0.05mm/rev), resulting in high resolution measurements.
- Non-rotating spindle
- Carbide tipped measuring face.
Technical Data:
- Spindle Pitch: 0.05mm or .025mm (0-13mm and 0-.500″ models)
- Spindle Face: Flat w/ carbide tip (more than HRA90) or spherical lapped surface
- Fixture thickness for clamp nut: 9.5mm or 11.5mm (0-13mm and 0-.500″ models)
- Scale Surface: Hard-chrome plating
Mitutoyo Micrometer Heads – Differential Screw Translator (Extra-Fine Feeding) Type:
- 110-115 Micrometer Head Differential Screw Translator: 0-.02″ (.00005″, Flat Carbide Tip)
- 110-116 Micrometer Head Differential Screw Translator: 0-.02″ (.000005″, Flat Carbide Tip)
- 110-117 Micrometer Head Differential Screw Translator: 0-.02″ (.00005″, Spherical Face)
- 110-118 Micrometer Head Differential Screw Translator: 0-.02″ (.000005″, Spherical Face)
- 110-111 Micrometer Head Differential Screw Translator: 0-.05″ (.00005″, Spherical Face)
- 110-112 Micrometer Head Differential Screw Translator: 0-.05″ (.000005″, Spherical Face)
- 110-504 Micrometer Head Differential Screw Translator: 0-.50″ (.00002″/.001″, Spherical Face)
- 110-105 Micrometer Head Differential Screw Translator: 0-1mm (.001mm, Flat Carbide Tip)
- 110-106 Micrometer Head Differential Screw Translator: 0-1mm (.0001mm, Flat Carbide Tip)
- 110-107 Micrometer Head Differential Screw Translator: 0-1mm (.001mm, Spherical Face)
- 110-108 Micrometer Head Differential Screw Translator: 0-1mm (.0001mm, Spherical Face)
- 110-101 Micrometer Head Differential Screw Translator: 0-2.5mm (.001mm, Spherical Face)
- 110-102 Micrometer Head Differential Screw Translator: 0-2.5mm (.0001mm, Spherical Face)
- 110-502 Micrometer Head Differential Screw Translator: 0-13mm (.0005mm/.01mm, Spherical Face)
