Mitutoyo 149-182 Mic Head Small Size Carbide Spindle 0-.500″
Product Code: 149-182MFGID: 149-182
Brand: Mitutoyo
Product Description

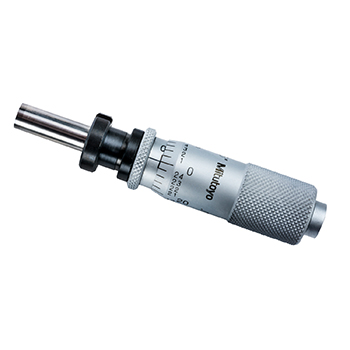

149-182 Mitutoyo Micrometer Head Common Type in Small Size with Carbide-Tipped Spindle: 0-.500″
The Mitutoyo 149-182 Micrometer Head Common Type in Small Size with Carbide-Tipped Spindle has the following specifications:
- Range: 0-.500″
- Graduations: .001″
- Accuracy: +/- .0001″
- Stem Diameter: .375″
- Stem: With Clamp Nut
- Spindle Face: Flat (Carbide Tip)
- Remarks: With Spindle Lock
Features:
- Type: Common Type in Small Size w/ Carbide-Tipped Spindle
- Carbide tipped measuring face.
Specifications:
- Available Graduations: .01mm or .001″
- Spindle Pitch: 0.5mm
- Spindle Face:
- Flat (carbide tip): More than HRA90
- Spherical (SR4)
- Long Spindle Type: More than HRC60
- Scale Surface: Hard-chrome plating
- Fixture Thickness for Clamp Nut: 11.5mm
Mitutoyo Micrometer Heads – Common Type in Small Size w/ Carbide-Tipped Spindle:
Plain Stem – Inch:
- 149-148 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-.500″ (Flat Face)
- 149-185 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-.500″ (Flat Face, Spindle Lock)
- 149-811 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-.500″ (Spherical SR4 Face)
- 149-831 Micrometer Head Small Size w/ Carbide Tipped Spindle: .500″-0 (Flat Face, Rev. Reading)
With Clamp Nut – Inch:
- 149-147 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-.500″ (Flat Face)
- 149-182 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-.500″ (Flat Face, Spindle Lock)
- 149-812 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-.500″ (Spherical SR4 Face)
- 149-832 Micrometer Head Small Size w/ Carbide Tipped Spindle: .500″-0 (Flat Face, Rev. Reading)
Plain Stem – Metric:
- 149-132 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-15mm (Flat Face)
- 149-183 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-15mm (Flat Face, Spindle Lock)
- 149-801 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-15mm (Spherical SR4 Face)
- 149-821 Micrometer Head Small Size w/ Carbide Tipped Spindle: 15mm-0 (Flat Face, Rev. Reading)
With Clamp Nut – Metric:
- 149-131 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-15mm (Flat Face)
- 149-184 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-15mm (Flat Face, Spindle Lock)
- 149-802 Micrometer Head Small Size w/ Carbide Tipped Spindle: 0-15mm (Spherical SR4 Face)
- 149-822 Micrometer Head Small Size w/ Carbide Tipped Spindle: 15mm-0 (Flat Face, Rev. Reading)
