INSIZE Non-Rotating Spindle Digital Micrometers
Product Code: 3632-30AMFGID: 3632-30A
Brand: INSIZE
Product Description

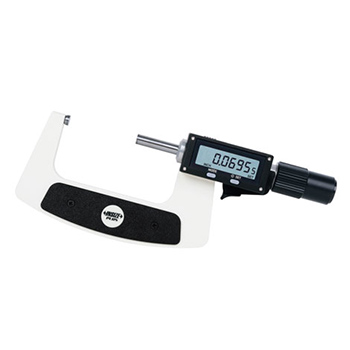

3632-30A INSIZE Non-Rotating Spindle Digital Micrometer: 0-1 .18″/0-30mm
The INSIZE 3632-30A Non-Rotating Spindle Digital Micrometer has the following specifications:
- Range: 0-1 .18″/0-30mm
- Accuracy Stroke≤ .984″: ±.00008″
- Accuracy Stroke> .984″: ±.00012″
- L: 1.496″
- b: .945″
Features:
- Resolution: .0005″/0.01mm, .00005″/0.001mm, .00002″/0.0005mm
- Repeatability: .OO004″
- Measuring force: 5-1 ON
- Lever force measuring device, suitable for mass measurement
- No-rotating spindle, suitable for measuring cylindrical workpiece
- Quick measurement: one turn of sleeve or ratchet stop makes .079″ spindle feed
- Carbide measuring faces
- Data output
- Button function: mm/inch, max./min. value tracking, preset value, hold, on/off, zero
- Ratchet sets force measurement
- CR2032 battery, automatic power off
- Supplied with setting standards (except 0-1 .18″/0—30mm)
- Optional accessary: data output cable (part no. 7315-80, 7302-80)
If this micrometers page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE Non-Rotating Spindle Digital Micrometer
- 3632-30A Non-Rotating Spindle Digital Micrometer 0-1 .18″/0-30mm
- 3632-55A Non-Rotating Spindle Digital Micrometer .98-2.17″/25-55mm
- 3632-80A Non-Rotating Spindle Digital Micrometer 1.97-3.15″/50-80mm
- 3632-105A Non-Rotating Spindle Digital Micrometer 2.95-4.13″/75-105mm
- 3632-130A Non-Rotating Spindle Digital Micrometer 3.94-5.12″/100—130mm
- 3632-155A Non-Rotating Spindle Digital Micrometer 4.92-6.1″/125-155mm
- 3632-180A Non-Rotating Spindle Digital Micrometer 5.91 -7.09″/150-180mm
- 3632-205A Non-Rotating Spindle Digital Micrometer 6.89-8.07″/175-205mm
- 3632-230A Non-Rotating Spindle Digital Micrometer 7.87-9.06″/200-230mm
- 3632-255A Non-Rotating Spindle Digital Micrometer 8.86-10.04″/225~255mm
- 3632-280A Non-Rotating Spindle Digital Micrometer 9.84-11 .02″/250—280mm
- 3632-305A Non-Rotating Spindle Digital Micrometer 10.83-12.01″/275-305mm
