INSIZE 3661-55 Metric Digital Micrometer
Product Code: 3661-55MFGID: 3661-55
Brand: INSIZE
Product Description

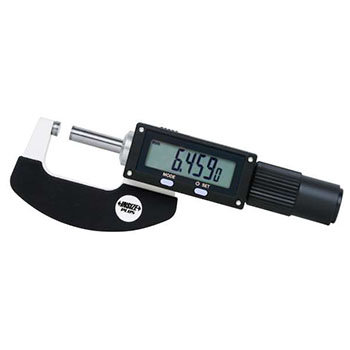

3661-55 INSIZE Metric High Precision Non-Rotating Spindle Digital Micrometer: 0.98-2.17″/25-55mm
The INSIZE 3661-55 Metric High Precision Non-Rotating Spindle Digital Micrometer has the following specifications:
- Range: 0.98-2.17″/25-55mm
- Accuracy Stroke < 25mm: +/-2um
- Accuracy Stroke > 25mm: +/-3um
- L: 63mm
- a: 195mm
- b: 30.5mm
Features:
- Resolution: 0.01mm/0.0005″, 0.001mm/0.00005″, 0.0005mm/0.00002″
- Repeatability: 0.5um
- Measuring force: 5-10N
- Flatness of measuring faces: 0.3um
- Parallelism of measuring faces: 0.5um
- Ratchet stop
- Non-rotating spindle, suitable for cylinders
- Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed
- Carbide measuring faces
- Data output
- Button function: mm/inch, max./min. value tracking, preset value, hold, on/off, zero
- CR2032 battery
- Automatic power off, turn the sleeve to turn on
- Optional accessary: setting standards (code 7386),
- data output cable (code 7302-80, 7305-A0J)
If this micrometers page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE Metric High Precision Non-Rotating Spindle Digital Micrometer
- 3661-30 Metric High Precision Non-Rotating Spindle Digital Micrometer 0-1.18″/0-30mm
- 3661-55 Metric High Precision Non-Rotating Spindle Digital Micrometer 0.98-2.17″/25-55mm
- 3661-80 Metric High Precision Non-Rotating Spindle Digital Micrometer 1.97-3.15″/50-80mm
- 3661-105 Metric High Precision Non-Rotating Spindle Digital Micrometer 2.95-4.13″/75-105mm
- 3661-130 Metric High Precision Non-Rotating Spindle Digital Micrometer 3.94-5.12″/100-130mm
- 3661-155 Metric High Precision Non-Rotating Spindle Digital Micrometer 4.92-6.1″/125-155mm
- 3661-180 Metric High Precision Non-Rotating Spindle Digital Micrometer 5.91-7.09″/150-180mm
- 3661-205 Metric High Precision Non-Rotating Spindle Digital Micrometer 6.89-8.07″/175-205mm
- 3661-230 Metric High Precision Non-Rotating Spindle Digital Micrometer 7 .87-9.06″/200-230mm
- 3661-255 Metric High Precision Non-Rotating Spindle Digital Micrometer 8.86-10.04″/225-255mm
- 3661-280 Metric High Precision Non-Rotating Spindle Digital Micrometer 9.84-11.02″/250-280mm
- 3661-305 Metric High Precision Non-Rotating Spindle Digital Micrometer 10.83-12.01″/275-305mm
