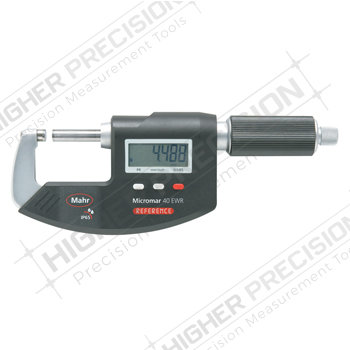

Mahr 4151707 Digital Micrometer Micromar: 2-3″/50-75mm
Product Code: 4151707MFGID: 4151707
Brand: MAHR
Product Description
4151707 Mahr Digital Micrometer Micromar – EWR: 50 – 75mm (2 – 3″)
The Mahr 4151707 Digital Micrometer Micromar – EWR has the following specifications:
- Measuring range: 50 – 75mm (2 – 3″)
- Error limit G: 3µm
- Resolution: 0.001mm /.00005″
- Spindle thread pitch: 0.635mm
Features:
- RESET (Zero setting the display for Relative measurement)ABS (Switch between Relative and Absolute measurement)mm/inch Reference-Lock/Unlock PRESET (Reference setting)
- DATA (Data transmission via connection cable)
- Immediate measurement due to the Reference system
- MarConnect data output,choose alternatively USB OPTO RS232C Digimatic
- High contrast Liquid Crystal Display with 8.5 mm high digits
- Hard lacquered steel frame,heat insulated
- Spindle and anvil are carbide tipped
- Spindle is made of stainless steel, hardened throughout and ground
- Ratchet is integrated in the thimble
- Rapid drive
- Supplied with:Case, battery, operating instructions and setting standard (from measuring range 25-50 mm / 1-2″)
Digital Micrometer Micromars – EWR:
- 4151721 Digital Micrometer Micromar – EWR: 0 – 25mm (0 – 1″)
- 4151705 Digital Micrometer Micromar – EWR: 0 – 25mm (0 – 1″)
- 4151706 Digital Micrometer Micromar – EWR: 25 – 50mm (1 – 2″)
- 4151707 Digital Micrometer Micromar – EWR: 50 – 75mm (2 – 3″)
- 4151708 Digital Micrometer Micromar – EWR: 75 – 100mm (3 – 4″)
