Mitutoyo 339-304 Ext. Pipe Tubular Micrometer: 8-80″/2000mm
Product Code: 339-304MFGID: 339-304
Brand: Mitutoyo
Product Description

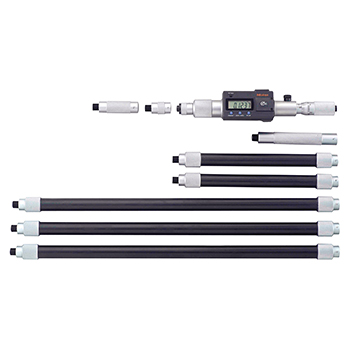

339-304 Mitutoyo Extension Pipe Digimatic Tubular Inside Micrometer: 8-80″/203.2-2000mm
The Mitutoyo 339-304 Extension Pipe Digimatic Tubular Inside Micrometer has the following specifications:
- Range: 8-80″/203.2-2000mm
- Resolution: .0001″/.001mm
- Travel of micrometer head: 1″
- Extension Pipes: 1″, 2″, 4″, 8″ (2 pcs) 16″ (3 pcs)
Features:
- Wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head.
- The 339 Series uses highly durable extension pipes.
- Carbide-tipped measuring faces.
- Supplied in wooden case.
Technical Data:
- Metric Model Accuracy: +/-(3+n+L/50)?m*
L=Maximum measuring length (mm)
Fraction rounded up
n=Number of rods
Excluding quantizing error - Inch Model Accuracy: +/-{.00015+.00005n+.00005R/2}”*
R=Maximum measuring length (inch)
n=Number of rods
Fraction rounded up - Display: LCD
- Battery: SR44 (1 pcs.), 938882
- Battery life: Approx. 8 months under normal use
Mitutoyo Extension Pipe Digimatic Tubular Inside Micrometers:
