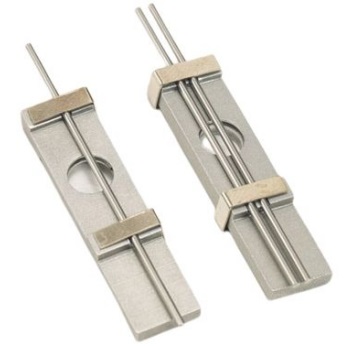

Mitutoyo 64AAA254 3-Wire Holder and Thread Wire Set: .30mm
Product Code: 64AAA254MFGID: 64AAA254
Brand: Mitutoyo
Product Description
64AAA254 Mitutoyo 3-Wire Thread Measuring Systems: .30mm Pitch
The Mitutoyo 64AAA254 thread wire set on holders has the following specifications:
- Pitch: .30mm
- Thread Measuring Wire Diameter: .1732mm/.00682″
Features:
- Fast and accurate method of thread measuring available for use with Micrometer
- Compatible with micrometers with anvil/spindle .250″ diameter
Applications:
- Measure set of thread plug gages and working thread plug gages
- Monitor the wear on working thread plug gages
- Monitor and control pitch diameter variation during thread fabrication
- Reduce measurement time to a fraction of the time normally taken using the traditional three wire method
- Use in conjunction with “Go” and “No Go”thread ring gages to control thread size to the most demanding specifications
- Determine out of roundness and taper that may exist in threaded parts
- Applications for preplating and post plating thread measurement.
Tolerance of Wires:
- Diameter +/- .000010″
- Roundness +/- .000010″
- Surface finish 2 micro inches AA, lapped.
- Hardness HRC 59-64
- Certification of accuracy included.
- Traceable to NIST.
- Meets or exceeds all ANSI and ISO specs.
Mitutoyo Thread Wire Sets on Holders – Metric
- 64AAA251 Thread Wires on Holders: .2mm Pitch
- 64AAA252 Thread Wires on Holders: .225mm Pitch
- 64AAA253 Thread Wires on Holders: .25mm Pitch
- 64AAA254 Thread Wires on Holders: .30mm Pitch
- 64AAA255 Thread Wires on Holders: .35mm Pitch
- 64AAA256 Thread Wires on Holders: .40mm Pitch
- 64AAA257 Thread Wires on Holders: .45mm Pitch
- 64AAA258 Thread Wires on Holders: .50mm Pitch
- 64AAA259 Thread Wires on Holders: .55mm Pitch
- 64AAA260 Thread Wires on Holders: .60mm Pitch
- 64AAA261 Thread Wires on Holders: .70mm Pitch
- 64AAA262 Thread Wires on Holders: .75mm Pitch
- 64AAA263 Thread Wires on Holders: .80mm Pitch
- 64AAA264 Thread Wires on Holders: .85mm Pitch
- 64AAA265 Thread Wires on Holders: .90mm Pitch
- 64AAA266 Thread Wires on Holders: 1.00mm Pitch
- 64AAA267 Thread Wires on Holders: 1.25mm Pitch
- 64AAA268 Thread Wires on Holders: 1.50mm Pitch
- 64AAA269 Thread Wires on Holders: 1.75mm Pitch
- 64AAA270 Thread Wires on Holders: 2.00mm Pitch
- 64AAA271 Thread Wires on Holders: 2.50mm Pitch
- 64AAA272 Thread Wires on Holders: 3.00mm Pitch
- 64AAA273 Thread Wires on Holders: 3.50mm Pitch
- 64AAA274 Thread Wires on Holders: 4.00mm Pitch
