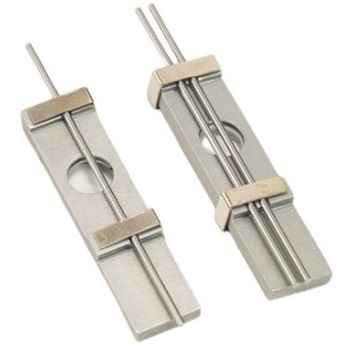

Mitutoyo 64AAA216 3-Wire Holder and Thread Wire Set: 28 TPI
Product Code: 64AAA216MFGID: 64AAA216
Brand: Mitutoyo
Product Description
64AAA216 Mitutoyo 3-Wire Thread Measuring Systems: 28 TPI
The Mitutoyo 64AAA216 thread wire set on holders has the following specifications:
- Threads Per Inch: 28
- Thread Measuring Wire Diameter: .02062″
Features:
- Fast and accurate method of thread measuring available for use with Micrometer
- Compatible with micrometers with anvil/spindle .250″ diameter
Applications:
- Measure set of thread plug gages and working thread plug gages
- Monitor the wear on working thread plug gages
- Monitor and control pitch diameter variation during thread fabrication
- Reduce measurement time to a fraction of the time normally taken using the traditional three wire method
- Use in conjunction with “Go” and “No Go”thread ring gages to control thread size to the most demanding specifications
- Determine out of roundness and taper that may exist in threaded parts
- Applications for preplating and post plating thread measurement.
Tolerance of Wires:
- Diameter +/- .000010″
- Roundness +/- .000010″
- Surface finish 2 micro inches AA, lapped.
- Hardness HRC 59-64
- Certification of accuracy included.
- Traceable to NIST.
- Meets or exceeds all ANSI and ISO specs.
Mitutoyo Thread Wire Sets on Holders – Inch
- 64AAA201 Thread Wires on
Holders: 120 TPI - 64AAA202 Thread Wires on
Holders: 100 TPI - 64AAA203 Thread Wires on
Holders: 95 TPI - 64AAA204 Thread Wires on
Holders: 90 TPI - 64AAA205 Thread Wires on
Holders: 80 TPI - 64AAA206 Thread Wires on
Holders: 72 TPI - 64AAA207 Thread Wires on
Holders: 64 TPI - 64AAA208 Thread Wires on
Holders: 56 TPI - 64AAA209 Thread Wires on
Holders: 50 TPI - 64AAA210 Thread Wires on
Holders: 48 TPI - 64AAA211 Thread Wires on
Holders: 44 TPI - 64AAA212 Thread Wires on
Holders: 40 TPI - 64AAA213 Thread Wires on
Holders: 36 TPI - 64AAA214 Thread Wires on
Holders: 32 TPI - 64AAA215 Thread Wires on
Holders: 30 TPI - 64AAA216 Thread Wires on
Holders: 28 TPI - 64AAA217 Thread Wires on
Holders: 27 TPI - 64AAA218 Thread Wires on
Holders: 26 TPI - 64AAA219 Thread Wires on
Holders: 24 TPI - 64AAA220 Thread Wires on
Holders: 22 TPI - 64AAA221 Thread Wires on
Holders: 20 TPI - 64AAA222 Thread Wires on
Holders: 18 TPI - 64AAA223 Thread Wires on
Holders: 16 TPI - 64AAA224 Thread Wires on
Holders: 14 TPI - 64AAA225 Thread Wires on
Holders: 13 TPI - 64AAA226 Thread Wires on
Holders: 12 TPI - 64AAA227 Thread Wires on
Holders: 11.5 TPI - 64AAA228 Thread Wires on
Holders: 11 TPI - 64AAA229 Thread Wires on
Holders: 10 TPI - 64AAA230 Thread Wires on
Holders: 9 TPI - 64AAA231 Thread Wires on
Holders: 8 TPI - 64AAA232 Thread Wires on
Holders: 7.5 TPI - 64AAA233 Thread Wires on
Holders: 7 TPI - 64AAA234 Thread Wires on
Holders: 6 TPI - 64AAA235 Thread Wires on
Holders: 5.5 TPI - 64AAA236 Thread Wires on
Holders: 5 TPI
