Screw Thread Micrometer # 575FP

Range/Size: 32-40 TPI

Graduation: .001"

Price: $357 $335.58
Lowest Price Guaranteed

Product Description

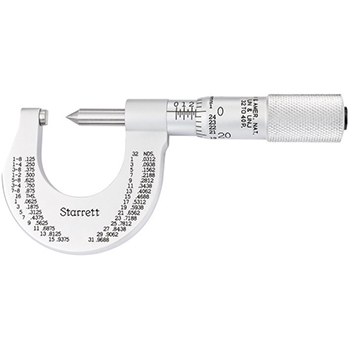

575FP Screw Thread Micrometer: 32-40 TPI

The 575FP has graduations of .001″.

The Starrett 575 micrometers have a pointed spindle and a double V-anvil, both shaped to contact the screw thread. The micrometer reading therefore gives the pitch diameter. 0-1″ Range, .001″ Grad, 32-40 TPI.


  • No glare Starrett satin chrome finish
  • Advanced sleeve design with staggered lines and distinct figures for precise, easy readability
  • Balanced frame design for comfortable, accurate measuring
  • Tapered frame for narrow slots and tight places
  • Furnished with fixed, non-rotating anvil
  • One-piece frame of drop forged steel
  • Extremely hard and stable one-piece spindle
  • Quick and easy adjustment
  • Design allows 50% to 75% contact with the thread to be measured, insuring contact with the pitch diameter at all times
  • For measuring American Unified National series and Unified J series screw threads
  • Series 585 micrometers come with a one-inch standard at no extra cost
  • Decimal equivalents on inch tool


  • Micrometer Type Screw Thread Micrometer, 32-40 TPI
  • Range (in) 0 – 1″ Capacity Pitch Diameter
  • Graduations (in) .001″
  • Anvil/Spindle Material Steel
  • Anvil Type Double V-anvil
  • Spindle Type Pointed spindle

The 575FP has the Starrett satin chrome finish – no glare – resists rust
