Starrett 575MDP Screw Thread Micrometer: 0.75-1 Pitch in mm
Product Code: 575MDPMFGID: 575MDP
Brand: Starrett
Product Description
575MDP Screw Thread Micrometer: 0.75-1.0 Threads per mm
The 575MDP has graduations of 0.01mm.

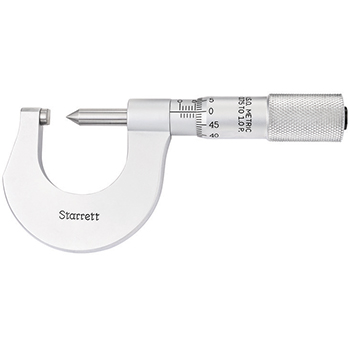

The Starrett 575 micrometers have a pointed spindle and a double V-anvil, both shaped to contact the screw thread. The micrometer reading therefore gives the pitch diameter. 0-25mm Range, 0.01mm Grad, 0.75-1.0 mm Pitch.
Features:
- Advanced sleeve design with staggered lines and distinct figures for precise, easy readability
- Balanced frame design for comfortable, accurate measuring
- Tapered frame for narrow slots and tight places
- Furnished with fixed, non-rotating anvil
- One-piece frame of drop forged steel
- Extremely hard and stable one-piece spindle
- Quick and easy adjustment
- Design allows 50% to 75% contact with the thread to be measured, insuring contact with the pitch diameter at all times
- For measuring I.S.O. metric and MJ screw threads
- Series 585M micrometers come with a 25mm standard at no extra cost
Specifications:
- Micrometer Type Screw Thread Micrometer, 0.75-1.0 Threads per mm
- Graduations (mm): 0.01mm
- Anvil/Spindle Material: Steel
- Anvil Type: Double V-anvil
- Spindle Type: Pointed spindle
The 575MDP has a no glare Starrett satin chrome finish
