SPI 11-350-6 Micrometer Calibration Set Grade 2: 2.5-25mm
Product Code: 11-350-6MFGID: 11-350-6
Brand: SPI
Product Description

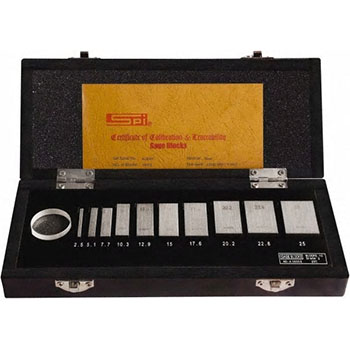

11-350-6 SPI Micrometer Calibration Set Grade 2: 2.5-25mm
The SPI 11-350-6 Micrometer Calibration Set has the following specifications:
- Grade: 2
- Range: 2.5-25mm
- Number of Blocks: 10
- Number of Flats: 1
- Flatness: 0.000004″
- Parallel: 0.00002″
Features:
- Measuring Ranges (Blocks Included):
- 0.0625 – 2″: 0.0625″, 0.100″, 0.125″, 0.200″, 0.250″, 0.300″, 0.500″, 1″, & 2″,
- 0.105 – 1″: 0.105″, 0.210″, 0.315″, 0.420″, 0.500″, 0.605″, 0.710″, 0.815″, 0.920″ & 1″
- 2.5-25mm: 2.5mm, 5.1mm, 7.7mm, 10.3mm, 12.9mm, 15.0mm, 17.6mm, 20.2mm, 22.8mm, & 25mm
- Optical flats for checking micrometer flatness are 0.500″ and 0.5125″.
- Certificate of calibration traceable to NIST.
- Furnished in wooden case.
SPI Micrometer Calibration Sets:
- 11-346-4 Micrometer Calibration Set Grade 0: .0625-2″ (9 Blocks, 2 Flats)
- 11-344-9 Micrometer Calibration Set Grade 0: .0625-2″ (9 Blocks, 1 Flat)
- 11-342-3 Micrometer Calibration Set Grade 0: .105-1″ (10 Blocks, 2 Flats)
