Starrett MicrometersStarrett 256MPN-25 Disc Micrometer with Non-Rotating Spindle: 0-25mm

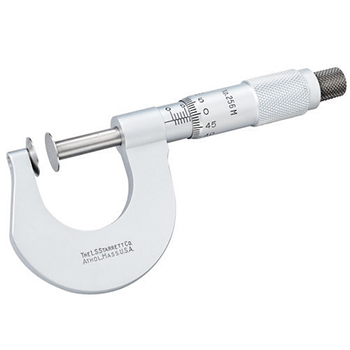

Starrett 256MPN-25 Disc Micrometer with Non-Rotating Spindle: 0-25mm

Name: 256MPN-25 Starrett Disc Micrometer with Non-Rotating Spindle: 0-25mm - HigherPrecision.com - Call 800-469-0132 or Buy Online
SKU: 256MPN-25
Price: 519.82 USD
Availability: InStock

Product Code: 256MPN-25

MFGID: 256MPN-25

Brand: Starrett

Range/Size: 0-25mm

Graduations: .01mm

Product Description

256MPN-25 Starrett Disc-Type Micrometer with Non-Rotating Spindle: 0-25mm

The Starrett 256MPN-25 Disc Micrometer has the following specifications:

Range: 0-25mm

Graduations: .01mm

Accuracy over the While Surface: +/- .003mm

Accuracy when measuring on the edges: +/- .004mm

Material: Steel

Lock Nut Type: Knurled Ring Type

Thimble Type: Ratchet

The Starrett 256M Disc-Type Micrometer is used to measure the thickness of work sections such as ribs, lands, fins, cutting edges on form tools, and chordal thickness of gear teeth. Because of their large anvil and spindle faces, the 25mm sizes are also useful for measuring the thickness of sheet materials like paper, cardboard, rubber, and plastics.

Features:

Advanced sleeve design with staggered lines and distinct figures for precise and easy readability

Quick-reading figures – every thousandth numbered on inch tools

Convenient decimal equivalents

Balanced frame and thimble design ensure easy handling and better readability

Available in the 1″ and 25mm sizes with rotating or non-rotating spindle

Quick and easy adjustment

Starrett satin chrome finish – no glare – resists rust

Ring-type knurled lock nut for quick and sure locking

The combination ratchet and speeder for uniform pressure and quicker adjustment on all sizes

Gracefully designed tapered frame for use in narrow slots and tight places

Anvil and spindle discs are 1/2″ (12.7mm) diameter tapering to .015″ (0.4mm) edge thickness making it possible to enter narrow grooves and recesses

Rigid one-piece frame of drop forged steel

Extremely hard and stable one-piece spindle

Micro-lapped measuring faces

Starrett 256M Series Disc-Type Micrometers

256MRL-25 Disc-Type Micrometer: 0-25mm

256MRL-50 Disc-Type Micrometer: 25-50mm

256MRL-75 Disc-Type Micrometer: 50-75mm

256MPN-25 Disc-Type Micrometer with Non-Rotating Spindle: 0-25mm

Starrett 256 Series Disc-Type Micrometers

256RL-1 Disc-Type Micrometer: 0-1″

256RL-2 Disc-Type Micrometer: 1-2″

256RL-3 Disc-Type Micrometer: 2-3″

256PN-1 Disc-Type Micrometer with Non-Rotating Spindle: 0-1″

Starrett 756 and 756M Electronic Disc-Type Micrometers:

756FL-1 Electronic Disc-Type Micrometer: 0-1″/25mm

756MEFL-25 Electronic Disc-Type Micrometer: 0-25mm/1″
