A global distributor of precision measurement tools
PRODUCT CODE: 786.1P-4

Electronic Blade Micrometer # 786.1P-4

Range: 3-4"/75-100mm

Resolution: .00005"/.001mm

Price: $1005 $994.95
Lowest Price Guaranteed
Quantity

Product Description

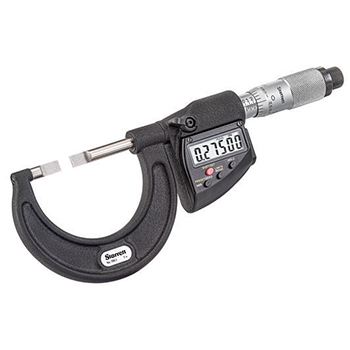

786.1P-4 Starrett Electronic Blade Micrometer: 3-4″/75-100mm

The Starrett 786.1P-4 Electronic Blade Micrometer with Non-Rotating Spindle has the following specifications:

  • Range: 3-4″/75-100mm
  • Resolution: .00005″/.001mm
  • Accuracy: +/- .0001″/.002mm
  • Blade Width: .030″
  • Thimble Type: Speeder
  • EDP: 72836

The newly designed 786.1 blade micrometer with non-rotating spindle is used for fast and accurate measurements of circular form tools, diameter and depth of narrow grooves, slots, key ways, recesses, and depths between lands and fins.

The balanced and tapered frame provides comfortable and accurate measuring and gives the right feel during use.

Features and Specifications:

  • Equipped with an RS232 output – ideal for use with DataSure Wireless Data Collection System
  • Starrett no-glare satin chrome finish on thimble and sleeve
  • Large, easy-to-read .275″ (7mm) tall characters, high contrast LCD digital readout
  • Extremely hard and stable one-piece spindle
  • Auto Off after 20 minutes of non use
  • Inch/metric conversion on English versions
  • Smooth friction thimble for uniform pressure
  • Measurement HOLD button
  • Zero at any position
  • Non-rotating spindle
  • Retain and return to true zero reading
  • Spindle lock
  • Data Output
  • PRESET button to install any reading at any position
  • Ability to set minimum and maximum limits

Starrett 786.1 Electronic Blade Micrometers with Non-Rotating Spindle: Inch

  • 786.1P-1 Electronic Blade Micrometer: 0-1″/25mm
  • 786.1P-2 Electronic Blade Micrometer: 1-2″/25-50mm
  • 786.1P-3 Electronic Blade Micrometer: 2-3″/50-75mm
  • 786.1P-4 Electronic Blade Micrometer: 3-4″/75-100mm
  • 786.1P-5 Electronic Blade Micrometer: 4-5″/100-125mm

Starrett 786.1 Electronic Blade Micrometers with Non-Rotating Spindle: Metric
