Dyer Gage 747-004 ID Rigid Flexible: 0.709-5.118″
Product Code: 747-004MFGID: 747-004
Brand: Dyer Gage
Product Description

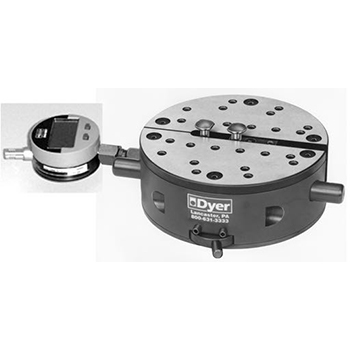

747-004 DYER GAGE Inside Diameters Rigid Flexible Part – 550 Series: 0.709-5.118″/18-130 mm
The DYER GAGE 747-004 Inside Diameters Rigid Flexible Part – 550 Series has the following specifications:
- ID Range: 0.709-5.118″/18-130mm
- OD Range: 0-4.724″/0-120mm
- Contact Travel: 0.800″/20mm
- Table Dimensions: 3rd contact stop at 45° Ø x Height 6.89″ x 3.35″ 175mm x 85mm
- Weight: 11.22 lbs/5.1 kg
Features:
- Armoloy coating on all tables is standard.
- ID-OD applications.
- High accuracy and set-up flexibility.
- Fast, accurate measurements.
- Gage R & R capable.
- Large range.
- Adjustable contact pressure.
- Contact point flexibility, use all types of indicators.
- Shop-rugged, 24/7.
Maximum Measuring Accuracy:
- Linear Range: 0.0″-0.080″ (0.0-2mm)Â 0.000050″ (0.0013mm)
- Range: 0.0″-0.200″ (0-5mm) ± 0.000040″ (0.001mm)
- Range: 0.0″-0.400″ (0-10mm) ± 0.0001″ (0.0025mm)
- Range: 0.0″-0.600″ (0-15mm) ± 0.0002″ (0.005mm)
- Repeatability: 0.000050″ (0.0013mm)
- Gage R & R capable in high tolerance applications
If this reference gages page does not have the specifications or information you are searching please visit the DYER GAGE company website. You can find their website by Clicking Here.
DYER GAGE Inside Diameters Rigid Flexible Part – 550 Series
- 747-001 Inside Diameters Rigid Flexible Part – 550 Series 0.345″-7.480″/9-190mm
- 747-004 Inside Diameters Rigid Flexible Part – 550 Series 0.709″-5.118″/18-130mm
- 747-003 Inside Diameters Rigid Flexible Part – 550 Series 0.590″-14.96″/15-380mm
- 747-000 Inside Diameters Rigid Flexible Part – 550 Series 0.345″-13.000″/9-330mm
