INSIZE 4662-12R Threaded Hole Locations Gages
Product Code: 4662-12RMFGID: 4662-12R
Brand: INSIZE
Product Description

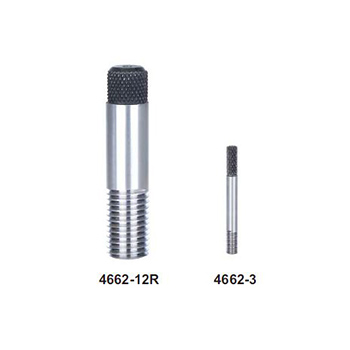

4662-12R INSIZE Threaded Hole Locations Gage: M12x1.5-6H
The INSIZE 4662-12R Threaded Hole Locations Gage has the following specifications:
- Size: M12x1.5-6H
- L: 53mm
- L1: 10mm
- L2: 18mm
- D: 12mm
Features:
- The concentricity between this surface and threaded part is less than 3um
- The taper of the thread part (top is big and bottom is small) lets the gage fixed in the thread holes
If this reference gages page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE Threaded Hole Locations Gage
- 4662-3 Threaded Hole Locations Gage M3x0.5-6H
- 4662-4 Threaded Hole Locations Gage M4x0.7-6H
- 4662-5 Threaded Hole Locations Gage M5x0.8-6H
- 4662-6 Threaded Hole Locations Gage M6x1-6H
- 4662-8 Threaded Hole Locations Gage M8x1.25-6H
- 4662-8P Threaded Hole Locations Gage M8x1-6H
- 4662-10 Threaded Hole Locations Gage M10x1.5-6H
- 4662-10P Threaded Hole Locations Gage M10x1-6H
- 4662-12 Threaded Hole Locations Gage M12x1.75-6H
- 4662-12P Threaded Hole Locations Gage M12x1-6H
- 4662-12R Threaded Hole Locations Gage M12x1.5-6H
- 4662-14 Threaded Hole Locations Gage M14x2-6H
- 4662-14P Threaded Hole Locations Gage M14x1-6H
- 4662-14R Threaded Hole Locations Gage M14x1.5-6H
- 4662-16 Threaded Hole Locations Gage M16X2-6H
- 4662-16P Threaded Hole Locations Gage M16x1-6H
- 4662-16R Threaded Hole Locations Gage M16x1.5-6H
- 4662-20 Threaded Hole Locations Gage M20x2.5-6H
- 4662-20P Threaded Hole Locations Gage M20x1-6H
- 4662-20R Threaded Hole Locations Gage M20x1.5-6H
