INSIZE 6889-3 Magnetic V-Block Matched Pair
Product Code: 6889-3MFGID: 6889-3
Brand: INSIZE
Product Description

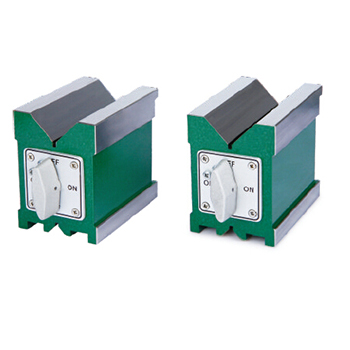

6889-3 INSIZE Magnetic V-Block Matched Pair: 150x75x100mm
The INSIZE 6889-3 Magnetic V-Block Matched Pair has the following specifications:
- Size (LxWxH): 150x75x100mm
- Range of shafts (Ød): 5-70mm
- Magnetic force: 190kgf
- Parallelism of V grooves to top, bottom, left, right sides: 6μm
- Squareness of V grooves to back side: 6μm
Features:
- Hardened, high accuracy, strong magnetic force, for grinding, light milling, drilling and inspection of round and square workpieces
- All working surfaces are hardened to HRC60±2
- Magnetic force on top, bottom and two V grooves
- V groove on the top for large shafts
- V groove on the bottom for small shafts
- Suitable for cast iron surface plates and granite surface plates
If this caliper page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
