Mitutoyo Height Master Series 515 – Metric
Product Code: 515-322MFGID: 515-322
Brand: Mitutoyo
Request Quote
Product Description

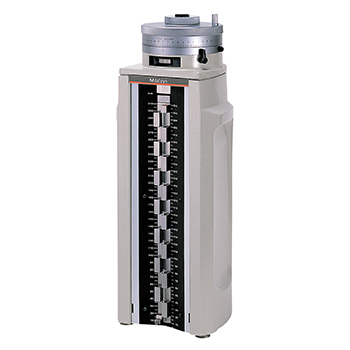

515-322 Mitutoyo Height Master: 5-310mm
The Mitutoyo 515-322 Height Master has the following specifications:
- Range: 5-310mm
- Graduation: .001mm
- Block Step: 20mm Staggered
- Block Pitch Accuracy: +/- .00015mm
- Parallelism of Block: .001mm
- Micrometer Head Accuracy: +/- .001mm
- Counter Resolution: 0.01mm
- Character Height: 4mm
Micrometer Head Specs:
- Travel Stroke: 20mm
- Pitch: 0.5mm/rev
- Hysteresis: .001mm
Features:
- Models with staggered arrangement of block stack have two measuring faces on the same level, one facing up and the other down (except for 515-310).
- Supplied in fitted wooden case.
- Each height master is supplied with a gage block for zero-setting.
Mitutoyo Height Masters:
- 515-310 Height Master: .200-12.2″ (.500″ Block Step)
- 515-311 Height Master: .200-12.2″ (1.00″ Block Step)
- 515-322 Height Master: 5-310mm
Mitutoyo Digital Height Masters:
- 515-375 Digital Height Master: .500-12.00″
- 515-377 Digital Height Master: .500-18.00″
- 515-379 Digital Height Master: .500-24.00″
- 515-374 Digital Height Master: 10-310mm
- 515-376 Digital Height Master: 10-460mm
- 515-378 Digital Height Master: 10-610mm
Mitutoyo Riser Blocks:
