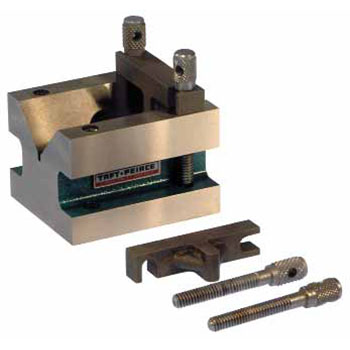

Suburban Tool Universal V-Blocks – Single
Product Code: 9131MFGID: 9131
Brand: Suburban Tool
Request Quote
Product Description
9131 Suburban Tool Universal V-Blocks – Single: 2-3/4″
The Suburban Tool 9131 Universal V-Blocks – Single has the following specifications:
- Length: 2-3/4″
- Width: 2-3/8″
- Height: 1-7/8″
- Vee Capacity: 1-1/2″
- Vee Central, Square & Parallel: 0.0003″
- Sides Square & Parallel: 0.0002″
- WT Single: 4
- WT Pair: 7
Features:
- Made of high-quality, heat-treated alloy steel.
- Sold as a single block or in pairs matched within the 0.0003″ and numbered for identification.
- Each block has a 23/32″ drilled hole in the center of the “V”– useful for providing clearance for drilling and boring operations.
- Base ledge has four 5/16-18 tapped holes for convenient clamping to angle irons or face plates.
- Each block is provided with two clamps and four clamping screws.
- Clamps do not interfere when blocks are used on sides or ends and may be swung aside or removed entirely.
- Each pair furnished in wooden storage case.
