Product Description

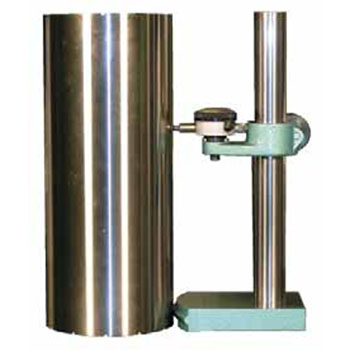

9146 Suburban Tool Comparator Square: 5″
The Suburban Tool 9146 Comparator Square has the following specifications:
- Length: 5″
- Width: 3-1/2″
- Height: 12-1/16″
- Usable Height Range: 2-1/8″ to 11-7/8″
- WT: 17
Features:
- 5″ x 3-1/2″ x 1″ thick base made of hardened stainless steel, serrated on the bottom for self-cleaning action and lapped flat for positive surface plate contact.
- 11-1/16″ x 1-1/4″ diameter column made of hardened stainless steel.
- Indicator bracket made of seasoned cast iron, with a slot that allows 1/8″ horizontal adjustment of the indicator.
- 1-11/16″ diameter AGD Group 1 dial indicator with adjustable bracket-type back, 0.0001″ graduations & 0.025″ range with 0-5-0 reading dial.
- Comes complete with indicator in a finished wooden case with hinged cover.
If this reference gages page does not have the specifications or information you are searching please visit the Suburban Tool company website. You can find their website by Clicking Here.
