Suburban Tool AB-20 Angle Block: 20 Degree
Product Code: AB-20MFGID: AB-20
Brand: Suburban Tool
Product Description
AB-20 Suburban Tool Angle Block Individual Replacement: Individual 20 Degree Block
The Suburban Tool AB-20 Angle Block Individual Replacement has the following specifications:
- Type: Individual 20 Degree Block
- WT: 1 lb
Features:
- Provides a quick, accurate and direct method of setting or checking angles.
- Eliminates calculations to help avoid errors. P-06050100, P-06050075, P-06025075 & P-06025050
- Blocks are furnished in 1 Degree increments to 5 Degree, then in 5 Degree increments to 30 Degree.
- With the addition of the optional 1/4 Degree and 1/2 Degree blocks, nearly any angle can be set in 1/4 Degree increments.
- 3″ long x 1/4″ thick hardened steel.
- Precision ground to +/- 0.0001″ per inch (equates to 21 seconds at 1 Degree & 16 seconds at 30 Degree).

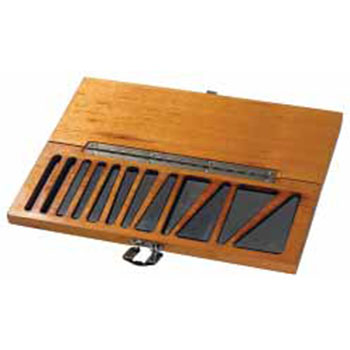

- Sets furnished in fitted wooden case.
- Individual replacement blocks available.
If this reference gages page does not have the specifications or information you are searching please visit the Suburban Tool company website. You can find their website by Clicking Here.
Suburban Tool Angle Block Individual Replacement Individual
- AB-1 Angle Block Individual Replacement Individual 1 Degree Block
- AB-2 Angle Block Individual Replacement Individual 2 Degree Block
- AB-3 Angle Block Individual Replacement Individual 3 Degree Block
- AB-4 Angle Block Individual Replacement Individual 4 Degree Block
- AB-5 Angle Block Individual Replacement Individual 5 Degree Block
- AB-10 Angle Block Individual Replacement Individual 10 Degree Block
- AB-15 Angle Block Individual Replacement Individual 15 Degree Block
- AB-20 Angle Block Individual Replacement Individual 20 Degree Block
- AB-25 Angle Block Individual Replacement Individual 25 Degree Block
- AB-30 Angle Block Individual Replacement Individual 30 Degree Block
- AB-QTR Angle Block Individual Replacement Individual 1/4 Degree Block
- AB-HLF Angle Block Individual Replacement Individual 1/2 Degree Block
