INSIZE Roundess Measuring Machine Chucks
Product Code: RCT-RA260-C1MFGID: RCT-RA260-C1
Brand: INSIZE
Product Description
RCT-RA260-C1 INSIZE Roundess Measuring Machine Chuck: M5x0.8mm

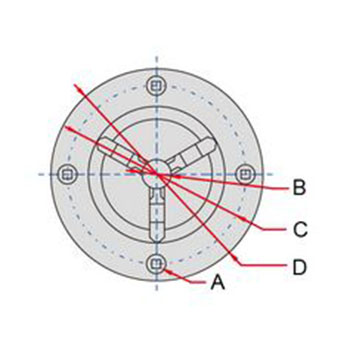

The INSIZE RCT-RA260-C1 Roundess Measuring Machine Chuck has the following specifications:
- A: M5x0.8mm
- B: 16mm
- C: 100mm
- D: 118mm
- E: 8mm
- F: 28mm
- G: 13mm
Features:
- Air—floating spindle
- Can measure roundness, coaxlality, concentricity, flatness, radial runout, axial runout, parallelism and perpendicularity.
- Spectrum analysis, automatic gap/burr removal, waveform analysis
- 4 roundness evaluation methods: smallest area method, least square method, smallest circumscribed circle method, largest inscribed circle method
- Measuring filer: 1-15upr, 1-50upr, 1-150upr, 1-250upr, 1-500upr, 15-100upr, 15-500upr, 2-15upr
- Filter form: gauss (ISO standard)
- Software is included, for measurement, analysis, data output, etc.
If this cmm probes page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE Roundess Measuring Machine Chuck
- RCT-RA260-C1 Roundess Measuring Machine Chuck M5x0.8mm
- RCT-RA260-C2 Roundess Measuring Machine Chuck M6x1.0mm
- RCT-RA260-C3 Roundess Measuring Machine Chuck M6x1.0mm
