INSIZE Snap GagesINSIZE 3356-25B High Precision Digital Spline Micrometer/Snap Gage

INSIZE 3356-25B High Precision Digital Spline Micrometer/Snap Gage

Product Code: 3356-25B

MFGID: 3356-25B

Brand: INSIZE

Range: 0-1"/0-25mm

Accuracy: .00008"

Request Quote

Product Description

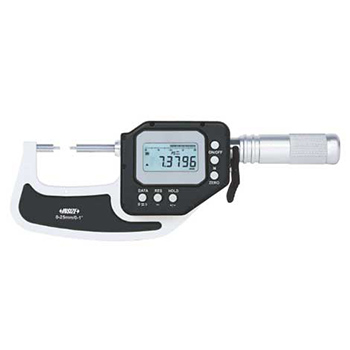

3356-25B INSIZE High Precision Digital Spline Micrometer/Snap Gage: 0-1″/0-25mm

The INSIZE 3356-25B High Precision Digital Spline Micrometer/Snap Gage has the following specifications:

Range: 0-1″/0-25mm

Accuracy: .00008″

Type: A

Repeatability: .00004″

A: 2.480″

B: .984″

Features:

Absolute encoder, the original data remains after power off.

Adjustable Resolution : 0.0002MM/0.00001″ , 0.001/0.00005″ , 0.01/0.0005″

One turn of sleeve makes .2″ spindle feed

Measurement Accuracy is not affected by the use of sleeve

Press the fork, the spindle retracts 12″

Linear ball bearings for ten million times use

Carbide spindle and anvil

Measuring force 7-10N

Customizable measuring force range 2-12N. Attention: small measuring force will reduce the dustproof and waterproof level

Button function: data output, tolerance, data preset, data hold, measuring direction, max./min./TIR, power-off time, on/off, zero,mm/inch, adjust resolution

Supplied with gage blocks for zero setting

Power: rechargeable battery, for 24 hours continuous working

If this snap gages page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.

INSIZE High Precision Digital Spline Micrometer/Snap Gage

3356-25 High Precision Digital Spline Micrometer/Snap Gage 0-1″/0-25mm

3356-50 High Precision Digital Spline Micrometer/Snap Gage 1-2″/25-50mm

3356-75 High Precision Digital Spline Micrometer/Snap Gage 2-3″/50-75mm

3356-25B High Precision Digital Spline Micrometer/Snap Gage 0-1″/0-25mm

3356-50B High Precision Digital Spline Micrometer/Snap Gage 1-2″/25-50mm

3356-75B High Precision Digital Spline Micrometer/Snap Gage 2-3″/50-75mm
