Product Description
ISR-SB40B INSIZE Small Rod Probe: 0.039-0.197″
The INSIZE ISR-SB40B Small Rod Probe has the following specifications:
- Measuring Range: 0.039-0.197″
- Probe Type: Small Rod
- Measure small rods
- Material: Alloy Aluminum

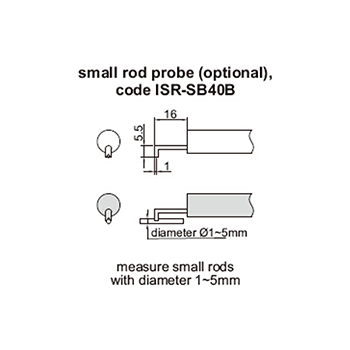

- Image above provides further specifications
Features:
- This probe is compatible with the Surface Roughness Tester ISR-S1000B
- 48 roughness parameters according to ISO-4287, JIS-B0601, ISO-12085, JIS-B0631
- Automatic probe leveling
- Measuring range up to 39370uin, can measure grit and shot blasting
- Traverse length up to 1.97″
- The probe can rotate from -90° to +90°
- Color touch screen, display roughness values, profile and curves
- Can print roughness values, profile and curves
- Memory of maximum 1000 results
- Can set tolerance
- Made in Italy
If this surface roughness page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE Surface Roughness Probes
- ISR-SB10BÂ Â Standard ProbeÂ
- ISR-SB60BÂ Â Small Hole Probe
- ISR-SB70BÂ Â Internal Angle Probe
- ISR-SB130B Knife Edge Probe
- ISR-SB150B Deep Groove Probe: Depth .512″
- ISR-SB120B Deep Groove Probe: Depth .787″
- ISR-SB30BÂ Â Hole Probe
- ISR-SB40BÂ Â Small Rod Probe
- ISR-SB50BÂ Â Transverse Probe
- ISR-SB80BÂ Deep Hole Probe
- ISR-SB110B Cylinder/Hole Probe
- ISR-SB20BÂ Groove Probe Measure Plane Surfaces and Grooves
