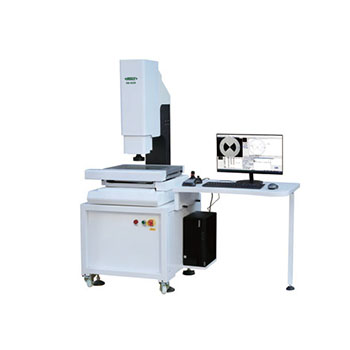

INSIZE ISD-R540-U CNC Vision Measuring System
Product Code: ISD-R540-UMFGID: ISD-R540-U
Brand: INSIZE
Product Description
ISD-R540-U INSIZE CNC Vision Measuring System: 500 x 400 x 150mm
The INSIZE ISD-R540-U CNC Vision Measuring System has the following specifications:
- Range: 500 x 400 x 150mm
- Stage Size: 706 x 566mm
- Glass Stage Size: 550 x 450mm
- Resolution: 0.5um
- Repeatability: 2um
- Objective: 0.7 x 4.5
- Working Distance: 55mm
- View Field: 1.3-7.6mm
- Max. height of workpiece 150mm
- Max. weight of workpiece 20kg
- Operation system Win 10/11
- Drive method Automatic
- Power supply 220V, 50/60Hz
Features:
- Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
- Double close-loop motion control, with precise positioning performance in high-speed movement
- Granite body, more stable
- Servo motors for X, Y, Z axis
- SPC function for large quantity measurement
If this CNC Vision Systems page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE CNC Vision Measuring Systems
- ISD-R320-U CNC Vision Measuring System 300 x 200 x 150mm
- ISD-R430-U CNC Vision Measuring System 400 x 300 x 150mm
- ISD-R540-U CNC Vision Measuring System 500 x 400 x 150mm
