INSIZE 2D+3D Composite CNC Vision Measuring Systems
Product Code: ISD-U322-UMFGID: ISD-U322-U
Brand: INSIZE
Product Description

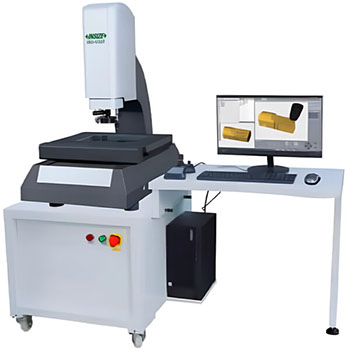

ISD-U322-U INSIZE 2D+3D Composite CNC Vision Measuring System: 300 × 200 × 200mm
The INSIZE ISD-U322-U 2D+3D Composite CNC Vision Measuring System has the following specifications:
- Measuring range: 300 × 200 × 200mm
- Stage size: 600 × 390mm
- Glass stage size: 350 × 250mm
- Accuracy (vision): (2+L/200)µm (L is the measuring length in mm)
- Accuracy (probe): (3+L/200)µm (L is the measuring length in mm)
- Repeatability: 1.5um
- Objective: 0.7X~4.5X (zoom)
- Working distance: 55mm
- View field (diagonal length): 1.3~7.9mm
- Magnification: 36X~210X (on 21.5″ monitor)
- Camera: 1/2″ color CCD, 2M pixel
- Illumination: surface-coaxial light, programmable segmented ring light | contour-adjustable LED light
- Max. height of workpiece: 195mm
- Operation system: Windows 10/11
- Drive method: automatic
- Power supply: 110/220V, 50/60Hz
- Dimension (L×W×H): 1400×900×1780mm 1600×1120×1780mm 1650×1120×1780mm 1650×1220×1780m
- Weight: 440kg 560kg 580kg 620kg
Features:
- Motorized zoom objective
- Can import 3D drawings
- Vision measurement and probe measurement can be used in the same program
- Granite platform, column and stage, more stable
- Double close-loop motion control, with precise positioning performance in high speed movement
- Panasonic servo control motor
- 40 independent surface light source, 200-step adjustment
- Servo motors for X, Y, Z axis
If this CNC Vision System page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE 2D+3D Composite CNC Vision Measuring Systems
- ISD-U322-U 2D+3D Composite CNC Vision Measuring System 300 × 200 × 200mm
- ISD-U432-U 2D+3D Composite CNC Vision Measuring System 400 × 300 × 200mm
- ISD-U532-U 2D+3D Composite CNC Vision Measuring System 500 × 300 × 200mm
- ISD-U542-U 2D+3D Composite CNC Vision Measuring System 500 × 400 × 200mm
Only logged in customers who have purchased this product may leave a review.
