INSIZE CNC Vision Measuring Systems – Manual Zoom Lens
Product Code: ISD-V220CNCA-UMFGID: ISD-V220CNCA-U
Brand: INSIZE
Product Description

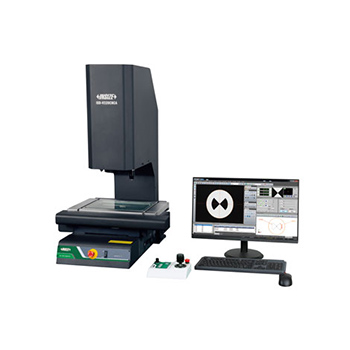

ISD-V220CNCA-U INSIZE CNC Vision Measuring System – Manual Zoom Lens: 8.66×4.72×5.90″
The INSIZE ISD-V220CNCA-U CNC Vision Measuring System – Manual Zoom Lens has the following specifications:
- Measuring Range: 8.66×4.72×5.90″
- Stage Size: 17.72×11.02″
- Glass Stage Size: 12.05×7.72″
- Resolution of X/Y/Z axis: Resolution of X/Y/Z axis .00002″.
- Accuracy of X/Y axis (98.4+10L)uin (L is the measuring length in inch)
- Repeatability of X/Y axis .00008″
- Objective 0.7X-4.5X(zoom)
- Working distance 3.62″
- Magnification 20X-128X (on 19.5″ monitor)
- Camera 1.2″ color CCD, 0.4M pixel
- View field (diagonal length .06-.43″)
- Max. height of workpiece 5.90″
- Max. weight of workpiece 66lb
- Operation system Windows 7/8/10.
Features:
- Automatic edge-detection, focus, measuring, contour scanning, calibration, etc.
- Servo motors for X, Y, Z axis
- SPC function for large quantity measurement
If this vision measuring systems page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE CNC Vision Measuring System – Manual Zoom Lens
- ISD-V220CNCA-U CNC Vision Measuring System – Manual Zoom Lens 8.66×4.72×5.90″
- ISD-V220HN-U CNC Vision Measuring System – Manual Zoom Lens 8.66×4.72×11.81″
- ISD-V270CNCA-U CNC Vision Measuring System – Manual Zoom Lens 10.63×6.69×5.90″
- ISD-270HN-U CNC Vision Measuring System – Manual Zoom Lens 10.63×6.69×11.81″
- ISD-370CNCA-U CNC Vision Measuring System – Manual Zoom Lens 14.57×10.63×5.90″
- ISD-V370HN-U CNC Vision Measuring System – Manual Zoom Lens 14.57×10.63×11.81″
