Mitutoyo MicroscopesMitutoyo 176-137 TM-505B/1005B 10X Objective

mitutoyo 176-137 TM-505B/1005B Toolmaker Microscope Accessory

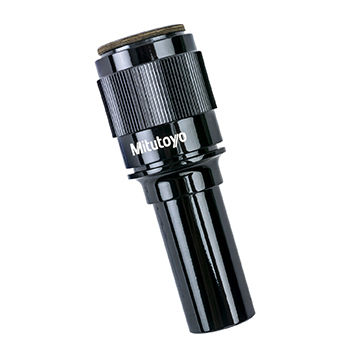

Mitutoyo 176-137 TM-505B/1005B 10X Objective

Name: 176-137 Mitutoyo TM-505B/1005B 10X Objective - Call 800-469-0132 or Buy Online
SKU: 176-137
Price: 317.30 USD
Availability: InStock

Product Code: 176-137

MFGID: 176-137

Brand: Mitutoyo

Range: 10X

Accessories: Objective

Product Description

176-137 Mitutoyo TM-505B/1005B Toolmaker Microscope Accessory: Objective 10X

The Mitutoyo 176-137 TM-505B/1005B Toolmakers’ Microscope Objective has the following specifications:

Range: 10X

W.D.: 14mm, N.A. 0.14

Accessory: Objective

The Mitutoyo TM Series is a toolmakers’ microscope well suited for measuring dimensions and angles of machined metals. It also can be used to check the shape of screws and gears by attaching an optional reticle. The compact body makes it ideal for use on shop floors with limited space.

Features:

Angle measurement is performed easily by turning the angle scale disc to align the cross-hair reticle with the workpiece image.

Illumination intensity can be adjusted

Included standard accessories create an overall magnification of 30X. Magnifications can be changed from 20 – 200X by using optional objectives and/or eyepieces.

TM-505B/1005B Toolmakers’ Microscope Accessories

176-115 TM-505B/1005B Toolmakers’ Microscope: 10X Eyepiece

176-116 TM-505B/1005B Toolmakers’ Microscope: 15X Projection Lens Set

176-117 TM-505B/1005B Toolmakers’ Microscope: 20X Eyepiece

176-138 TM-505B/1005B Toolmakers’ Microscope: Objective 2X

176-139 TM-505B/1005B Toolmakers’ Microscope: Objective 5X

176-137 TM-505B/1005B Toolmakers’ Microscope: Objective 10X
