Mitutoyo 176-117 TM-505B/1005B 20X Eyepiece
Product Code: 176-117MFGID: 176-117
Brand: Mitutoyo
Product Description

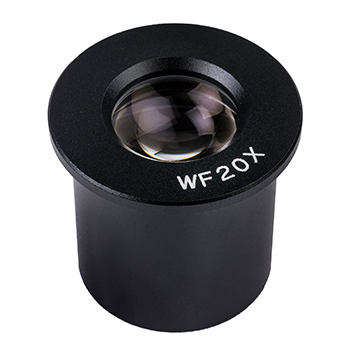

176-117 Mitutoyo TM-505B/1005B Toolmaker Microscope Accessory: 20X Eyepiece
The Mitutoyo 176-117 TM-505B/1005B Toolmakers’ Microscope Eyepiece has the following specifications:
- Range: 20X
- View Field Diameter: 10mm
- Accessory: Eyepiece
The Mitutoyo TM Series is a toolmakers’ microscope well suited for measuring dimensions and angles of machined metals. It also can be used to check the shape of screws and gears by attaching an optional reticle. The compact body makes it ideal for use on shop floors with limited space.
Features:
- Angle measurement is performed easily by turning the angle scale disc to align the cross-hair reticle with the workpiece image.
- Illumination intensity can be adjusted
- Included standard accessories create an overall magnification of 30X. Magnifications can be changed from 20 – 200X by using optional objectives and/or eyepieces.
TM-505B/1005B Toolmakers’ Microscope Accessories
- 176-115 TM-505B/1005B Toolmakers’ Microscope 10X Eyepiece
- 176-116 TM-505B/1005B Toolmakers’ Microscope 15X Projection Lens Set
- 176-117 TM-505B/1005B Toolmakers’ Microscope 20X Eyepiece
- 176-138 TM-505B/1005B Toolmakers’ Microscope Objective 2X
- 176-139 TM-505B/1005B Toolmakers’ Microscope Objective 5X
- 176-137 TM-505B/1005B Toolmakers’ Microscope Objective 10X
