PRODUCT CODE: S781BXTKZ

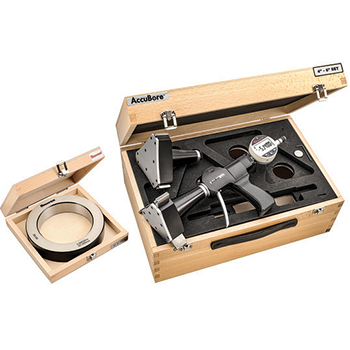

AccuBore Pistol Grip Electronic Bore Gage Set # S781BXTKZ

Range: 4-6"/100-150mm

Resolution: .00005"/.001mm

Price: $4192 $4150.08
Lowest Price Guaranteed
Quantity

Product Description

S781BXTKZ Starrett AccuBore Pistol Grip Electronic Bore Gage Set: 4-6″/100-150mm

The Starrett S781BXTKZ AccuBore Pistol Grip Electronic Bore Gage Set has the following specifications:

  • Range: 4-6″/100-150mm
  • Resolution: .00005″/.001mm
  • Accuracy: .00025″/.006mm

AccuBore is a high-quality, trigger-activated, two-point and three-point contact bore gaging system with extended range. Its convenient single-hand operation provides speed and control. Simply squeeze the trigger, insert the gage into the bore and release the trigger for an instant reading from the large, easy-to-read digital display. What makes AccuBore superior to other gages are features like the mechanically driven parallel anvils which extend simultaneously, establishing a more true alignment to the axis of the bore. This provides consistent pressure, resulting in more accurate readings than models with spring-driven contacts which are subject to pressure variations. Speed and convenience are further enhanced by the repositionable AccuBore� indicator, which may be swiveled and rotated for left, right hand or even vertical viewing. The gage also features a set of “Go/No-Go” lights in the readout display that quickly indicates whether a bore measurement is within a preset tolerance.

The Starrett S781BXTKZ AccuBore Pistol Grip Electronic Bore Gage Set is made up of the following:

  • 781BXTP-12 Electronic Pistol Grip Only with Indicator: 4-8″/100-200mm
  • Measuring Head: 4-5″/100-125mm
  • Measuring Head: 5-6″/125-150mm
  • Setting Ring: 5″/127mm

Features:

  • Equipped with an RS232 output – ideal for use with DataSure Wireless Data Collection System
  • Wireless capability
  • Single-hand operation with right- and left-hand viewing flexibility
  • Large, easy-to-read display
  • Enhanced wear life with carbide-faced contacts – available from 1/2″ to 8″
  • Convenient “Go/No-Go” tolerance indicator lights
  • True alignment with mechanically-driven parallel anvils
  • Push button inch/metric conversion
  • Preset and preset recall
  • Hold, max/min and zeroing capabilities
  • Blind bore measurement is standard for .50″ (12.7mm) and above
  • Specialized heads available for thread, groove and other non-standard measurements on request

Starrett 781BXT AccuBore Electronic Pistol Grip Bore Gages:

Sets:

  • S781BXTBZ AccuBore 2-Pt Electronic Pistol Grip Bore Gage Set: .080-.250″/2-6mm
  • S781BXTCZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .250-.375″/6-10mm
  • S781BXTHZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .250-.750″/6-20mm
  • S781BXTDZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .375-.750″/10-20mm
  • S781BXTEZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .750-2.00″/20-50mm
  • S781BXTJZ  AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: .750-4.00″/20-100mm
  • S781BXTFZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: 2.00-4.00″/50-100mm
  • S781BXTKZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: 4.00-6.00″/100-150mm
  • S781BXTGZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: 4.00-8.00″/100-200mm
  • S781BXTLZ AccuBore 3-Pt Electronic Pistol Grip Bore Gage Set: 6.00-8.00″/150-200mm

Individual Ranges:

  • 781BXTZ-100 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .080-.100″/2.0-2.5mm
  • 781BXTZ-120 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .100-.120″/2.5-3.0mm
  • 781BXTZ-160 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .120-.160″/3-4mm
  • 781BXTZ-200 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .160-.200″/4-5mm
  • 781BXTZ-250 AccuBore 2-Pt Electronic Pistol Grip Bore Gage: .200-.250″/5-6mm
  • 781BXTZ-312 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .250-.312″/6-8mm
  • 781BXTZ-375 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .312-.375″/8-10mm
  • 781BXTZ-500 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .375-.500″/10-12.5mm
  • 781BXTZ-625 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .500-.625″/12.5-16mm
  • 781BXTZ-750 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .625-.750″/16-20mm
  • 781BXTZ-1     AccuBore 3-Pt Electronic Pistol Grip Bore Gage: .750-1.00″/20-25mm
  • 781BXTZ-138 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 1.00-1.375″/25-35mm
  • 781BXTZ-2     AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 1.375-2.00″/35-50mm
  • 781BXTZ-258 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 2.00-2.625″/50-65mm
  • 781BXTZ-314 AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 2.625-3.25″/65-80mm
  • 781BXTZ-4      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 3.25-4.00″/80-100mm
  • 781BXTZ-5      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 4.00-5.00″/100-125mm
  • 781BXTZ-6      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 5.00-6.00″/125-150mm
  • 781BXTZ-7      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 6.00-7.00″/150-175mm
  • 781BXTZ-8      AccuBore 3-Pt Electronic Pistol Grip Bore Gage: 7.00-8.00″/175-200mm
