Brown and Sharpe Bore GagesBrown and Sharpe TESA 00812300 Analogue IMICRO Bore Gage Set

Brown and Sharpe TESA 00812300 Analogue IMICRO Bore Gage Set

Name: Brown and Sharpe TESA 00812300 Analogue IMICRO Bore Gage Set
SKU: 00812300
Price: 9477.60 USD
Availability: InStock

Product Code: 00812300

MFGID: 00812300

Brand: Brown and Sharpe

Measuring range: 40/100mm

Resolution: 0.005mm

Request Quote

Product Description

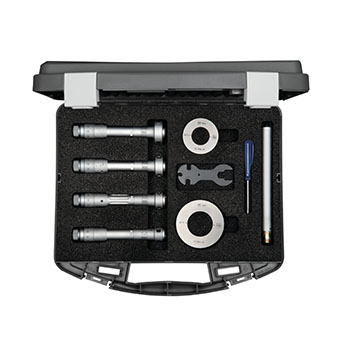

00812300 Brown and Sharpe TESA Analogue IMICRO Bore Gage Set – Metric: 40/100mm

The Brown and Sharpe TESA 00812300 Analogue IMICRO Bore Gage Set – Metric has the following specifications:

Measuring range: 40/100mm

Resolution: 0.005mm

Short designation: Set IMICRO BAJ, 40/100 mm

Weight: 293656lbs

Measuring face: Titanium nitride coating

Composed of: 00812301 Analogue internal micrometer IMICRO BAJ1, 40/50 mm 00812302 Analogue internal micrometer IMICRO BAJ2, 50/60 mm 00812303 Analogue internal micrometer IMICRO BAJ3, 60/70 mm 00812304 Analogue internal micrometer IMICRO BAJ4, 70/80 mm 00812305 Analogue internal micrometer IMICRO BAJ5, 80/90 mm 00812306 Analogue internal micrometer IMICRO BAJ6, 90/100 mm 00840108 Ring gauge, Ø 50 mm 00840109 Ring gauge, Ø 70 mm 00840110 Ring gauge, Ø 90 mm 00841800 Extension, 150 mm

Instrument:

3 contact lines, Abbe’s principle-compliant

No influence of temperature variation on the measurement

Measurement:

For the measurement of through bores

Auto-centering and auto-alignment

Constant measuring force

Extension system for reliable measurement even at large depths

Specifications:

Standard: DIN 863 T4 / NF E 11-099

Measuring face(s): Models (mm), 3,5/12: hardened steel, 11/100: titanium nitride hard-coating, 100/300: tungsten carbide tipped

Included in delivery: Measurement report, Declaration of conformity

Accessories:

860002: Key for analogue IMICRO BAJ 1/2/3/4/5/6

860001: Centering device for IMICRO 40/100 mm, 150 mm

862601: Centering device for IMICRO 100/200 mm, 200 mm

862802: Key for analogue IMICRO BAG 1/2/3

862702: Key for analogue IMICRO BAF 1/2/3

862901: Key for analogue IMICRO BAH 1/2/3/4 and BAK 1/2/3/4

862801: Screwdriver, 2,5 x 5 mm

840001: Extension for IMICRO 6/12 mm, 100 mm

840301: Extension for IMICRO 11/20 mm, 150 mm

840302: Extension for IMICRO 11/20 mm, 500 mm

841100: Extension for IMICRO 20/40 mm, 150 mm

841101: Extension for IMICRO 20/40 mm, 500 mm

841102: Extension for IMICRO 20/40 mm, 1000 mm

841800: Extension for IMICRO 40/100 mm, 150 mm

841801: Extension for IMICRO 40/100 mm, 500 mm

841802: Extension for IMICRO 40/100 mm, 1000 mm

842600: Extension for IMICRO 100/300 mm, 150 mm

842601: Extension for IMICRO 100/300 mm, 500 mm

842602: Extension for IMICRO 100/300 mm, 1000 mm

If this bore gages page does not have the specifications or information you are searching please visit the Brown and Sharpe TESA company website. You can find their website by Clicking Here.

TESA Analogue IMICRO Bore Gage Set – Metric

00813409 Analogue IMICRO Bore Gage Set – Metric: 3.5/6.5mm

00810000 Analogue IMICRO Bore Gage Set – Metric: 6/12mm

00810800 Analogue IMICRO Bore Gage Set – Metric: 11/20mm

00811500 Analogue IMICRO Bore Gage Set – Metric: 20/40mm

00812300 Analogue IMICRO Bore Gage Set – Metric: 40/100mm

00812600 Analogue IMICRO Bore Gage Set – Metric: 100/200mm
