Dyer Gage Classic ID Groove Gages – 104 Series Inch
Product Code: 104-101MFGID: 104-101
Brand: Dyer Gage
Product Description

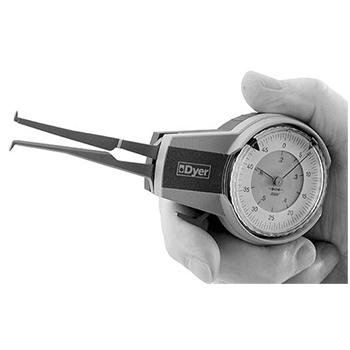

104-101 DYER GAGE Classic ID Groove Gage – 104 Series Inch: 0.2″-0.4″
The DYER GAGE 104-101 Classic ID Groove Gage – 104 Series Inch has the following specifications:
- Measuring Number Range: 0.2″-0.4″
- L Dim Reach of Arms: 1.07″
- A Dim Max Depth Groove: 0.094″
- B Dim Min Width Groove: 0.060″
- Carbide Ball Contact Standard Ø: 0.020″
- Graduation Order: 0.0002″
Features:
- Easy to use; the gage arms collapse to enter the small bore, then open into groove diameters.
- Customized standards in 1-2 days.
- Fast, accurate, repeatable measurements.
- Gage R & R capable (depends on tolerance and application). We will do Gage R & R on your part before we ship it to you.
- Hard steel alloyed arms and special machined case makes these gages light weight and shop durable. The arms are spring-loaded.
- New rack gear movement for increased accuracy and repeatability. Oil and corrosion resistant.
- Large, easy to read graduations. Gage uses a 2-pointer system.
If this caliper gages page does not have the specifications or information you are searching please visit the DYER GAGE company website. You can find their website by Clicking Here.
DYER GAGE Classic ID Groove Gage – 104 Series Inch
- 104-101 Classic ID Groove Gage – 104 Series Inch 0.2-0.4″
- 104-102 Classic ID Groove Gage – 104 Series Inch 0.2-0.6″
- 104-103 Classic ID Groove Gage – 104 Series Inch 0.4-0.8″
- 104-104 Classic ID Groove Gage – 104 Series Inch 0.8-1.2″
- 104-105 Classic ID Groove Gage – 104 Series Inch 1.2-1.6″
- 104-106 Classic ID Groove Gage – 104 Series Inch 1.6-2.0″
