Mitutoyo 516-550-56 35-Pc Rectangular Gage Block Set
Product Code: 516-550-56Brand: Mitutoyo
Product Description
516-550-56 Mitutoyo 35 Piece Steel Rectangular Gage Block Set: Grade K
The Mitutoyo 516-550-56 rectangular steel gage block set has the following specifications:
- Number of Blocks: 35 Pieces
- Grade: K
- Material: Steel
The 35 Piece Square Gage Block Set is made up of the following blocks:
- .10005″
- 9 Blocks: .1001-.1009″ (.0001″)
- 9 Blocks: .101-.109″ (.001″)
- 9 Blocks: .11-.19″ (.01″)
- 3 Blocks: .1-.3″ (.1″)
- 4 Blocks: .500″, 1″, 2″, 4″
Features:
- Available in steel and ceramic (CERA) block sets with multiple blocks per set options
- Specific, repeated heat treatment of steel blocks reduce deterioration change over time
- CERA blocks are free from dimensional change over time; have 10 times the abrasion resistance of steel gage blocks
- Advanced lapping techniques achieve the best flatness, surface roughness needed for gage blocks
- Black characters on gage blocks are inscribed by laser and clearly visible
- Rectangular base for accurate wringing
- Nominal length indicated with laser-etched, black characters
- Provided with Inspection Certificate

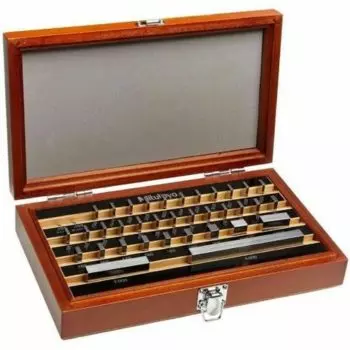

- Supplied in a solid wooden case
The Mitutoyo 516-550-56 rectangular gage block set provides exceptional accuracy for essential manufacturing quality control on very thin dimensional parts. The Mitutoyo Rectangular Gage Block sets offer exceptional precision and stability for calibration and manufacturing traceability of standard-sized pieces. Gage block sets are available in different grades, sizes and steps, offering exceptional precision and stability for calibration and manufacturing traceability. The Mitutoyo innovative lapping technique makes our gage blocks some of the most accurate and trusted instruments in the world, featuring exceptional flatness and ideal surface roughness. Our steel gage blocks are constructed of high-carbon, high-chrome steel while our CERA gage blocks are constructed of ceramic materials with superior surface qualities and corrosion resistance. A rectangular gage block can retain stable orientation both longitudinally and laterally. A wide range of application measurements can be made, including cutting tool positioning, angle measurement using a sign bar, taper measuring with a roller, and inspection of depth micrometers.
Mitutoyo Steel Rectangular Gage Block Sets:
- 516-549-56 Steel 81-Piece Rectangular Gage Block Set: Grade K
- 516-901-26Â Steel 81-Piece Rectangular Gage Block Set: Grade 00
- 516-902-26 Steel 81-Piece Rectangular Gage Block Set: Grade 0
- 516-903-26 Steel 81-Piece Rectangular Gage Block Set: Grade AS-1
- 516-904-26 Steel 81-Piece Rectangular Gage Block Set: Grade AS-2
- 516-550-56 Steel 35-Piece Rectangular Gage Block Set: Grade K
- 516-913-26Â Steel 35-Piece Rectangular Gage Block Set: Grade 00
- 516-914-26 Steel 35-Piece Rectangular Gage Block Set: Grade 0
- 516-915-26 Steel 35-Piece Rectangular Gage Block Set: Grade AS-1
- 516-916-26 Steel 35-Piece Rectangular Gage Block Set: Grade AS-2
