  • Product Code: #516-913-26

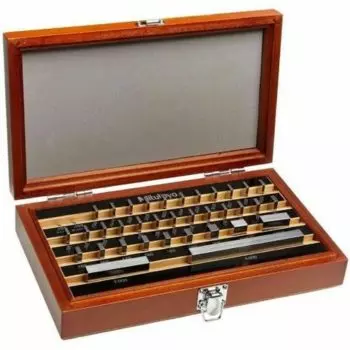

    35 Piece Grade 00 Steel Rectangular Gage Block Set # 516-913-26

    Blocks Per Set: 35

    Grade: 00

    Price: $1,790.00 $1,539.40
    Lowest Price Guaranteed
    Quantity

    Product Description

    516-913-26 Mitutoyo 35 Piece Steel Rectangular Gage Block Set: Grade 00

    The Mitutoyo 516-913-26 rectangular steel gage block set has the following specifications:

    • Number of Blocks: 35 Pieces
    • Grade: 00
    • Material: Steel

    The 35 Piece Square Gage Block Set is made up of the following blocks:

    • .10005"
    • 9 Blocks: .1001-.1009" (.0001")
    • 9 Blocks: .101-.109" (.001")
    • 9 Blocks: .11-.19" (.01")
    • 3 Blocks: .1-.3" (.1")
    • 4 Blocks: .500", 1", 2", 4"

    Features:

    • Rectangular gage block sets are supplied with a Mitutoyo certificate of inspection that the block meets American Society of Mechanical Engineers (ASME) B89.1.9-2002 standard for flatness, length, parallelism, and surface finish
    • High-carbon, high-chrome steel provides high hardness and wear resistance
    • Rectangular base for accurate wringing
    • Nominal length indicated with laser-etched, black characters
    • Identification number etched in block for traceability

    A rectangular gage block can retain stable orientation both longitudinally and laterally. A wide range of application measurements can be made, including cutting tool positioning, angle measurement using a sign bar, taper measuring with a roller, and inspection of depth micrometers.

    Mitutoyo Steel Rectangular Gage Block Sets:

    • 516-549-56 Steel 81-Piece Rectangular Gage Block Set: Grade K
    • 516-901-26 Steel 81-Piece Rectangular Gage Block Set: Grade 00
    • 516-902-26 Steel 81-Piece Rectangular Gage Block Set: Grade 0
    • 516-903-26 Steel 81-Piece Rectangular Gage Block Set: Grade AS-1
    • 516-904-26 Steel 81-Piece Rectangular Gage Block Set: Grade AS-2
    • 516-550-56 Steel 35-Piece Rectangular Gage Block Set: Grade K
    • 516-913-26 Steel 35-Piece Rectangular Gage Block Set: Grade 00
    • 516-914-26 Steel 35-Piece Rectangular Gage Block Set: Grade 0
    • 516-915-26 Steel 35-Piece Rectangular Gage Block Set: Grade AS-1
    • 516-916-26 Steel 35-Piece Rectangular Gage Block Set: Grade AS-2
  •
