CDI MQ3565 Mini Logic IQ Indicator: .250″

Name: MQ3565 CDI Mini Logic IQ Indicator: .250" - Call 800-469-0132 or Buy Online
SKU: MQ3565
Price: 460.60 USD
Availability: InStock

Product Code: MQ3565

MFGID: MQ3565

Brand: Chicago Dial Indicator

Resolution: .00005"/.001mm

Travel: .250"+/ 6.35mm+

Product Description

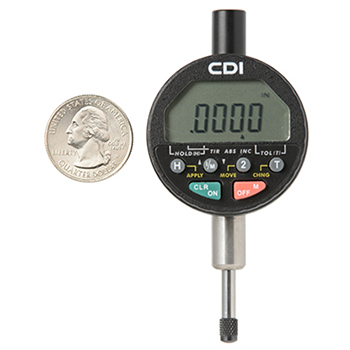

MQ3565 Chicago Dial Indicator Mini Logic IQ Indicator: .00005″/.001mm

The Chicago Dial Indicator MQ3565 Mini Logic IQ Indicator has the following specifications:

Resolution: .00005″/.001mm

Travel: .250″+/ 6.35mm+

Back: Flat

Top: Dust Cap

This small digital indicator features CDI’s Absolute Sensor for long battery life and true-position. This indicator is excellent for fixtures and hand gages. The Mini Logic IQ is loaded with basic and advanced features that are easy to operate. CDI includes quick sheet instruction, full instructions, and video instructions.

Features:

AGD Group 1 Size Electronic Indicator (Bezel Diameter 1.70″)

270 Degree Bezel Rotation

CDI Absolute – True Position Sensor

Long Battery Life – 3,000 hours Typical Use

Easy Operation with Six Button Keypad

3 Measuring Modes: Absolute/Preset, Incremental, TIR (with Low / High Storage Recall)

SPC Cables USB, MTI (Digimatic), RS232

Travel Reverse

Auto Off

Floating Zero

Power with Battery (CR2032) or Through Data Cable

Lock Feature and Programmable Lock Combination

User Tolerance Settings (high and low)

Switchable Resolutions .001″, .0005″, .0001″, .000050″ (.02mm, .01mm, .002mm, .001mm)

Inch/Metric

Largest LCD Display in Class

3 Hold Functions: Maximum / Minimum / Freeze

Stem and Back Mounting

200 Measurement Readings can be Stored Inside the Indicator and Viewed on the LCD. Stored Measurement Readings can be Downloaded to a Computer Using the CDI Single Gage Software / USB Cable.

.250″ and .400″ Travel (6.35mm and 10mm)

CE Compliant

Available with custom equations, lcds, nameplates, stems, buttons, IP rating and much more.

Dual Display (Analog and Numeric)

Low battery warning

Programmable ratios at keypad
