Chicago Dial Indicator IndicatorsCDI MQ4565 Mini Logic IQ Indicator: .250″

chicago dial indicator mq4565 mini logic iq indicator

CDI MQ4565 Mini Logic IQ Indicator: .250″

Name: MQ4565 CDI Mini Logic IQ Indicator: .250" - Call 800-469-0132 or Buy Online
SKU: MQ4565
Price: 446.50 USD
Availability: InStock

Product Code: MQ4565

MFGID: MQ4565

Brand: Chicago Dial Indicator

Resolution: .0005"/.010mm

Travel: .250"+/ 6.35mm+

Product Description

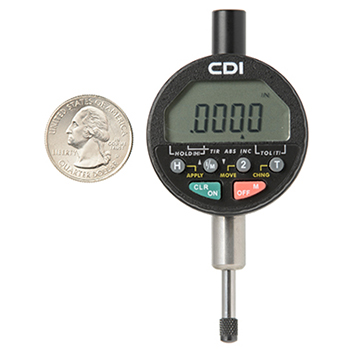

MQ4565 Chicago Dial Indicator Mini Logic IQ Indicator: .0005″/.010mm

The Chicago Dial Indicator MQ4565 Mini Logic IQ Indicator has the following specifications:

Resolution: .0005″/.010mm

Travel: .250″+/ 6.35mm+

Back: Flat

Top: Dust Cap

This small digital indicator features CDI’s Absolute Sensor for long battery life and true-position. This indicator is excellent for fixtures and hand gages. The Mini Logic IQ is loaded with basic and advanced features that are easy to operate. CDI includes quick sheet instruction, full instructions, and video instructions.

Features:

AGD Group 1 Size Electronic Indicator (Bezel Diameter 1.70″)

270 Degree Bezel Rotation

CDI Absolute – True Position Sensor

Long Battery Life – 3,000 hours Typical Use

Easy Operation with Six Button Keypad

3 Measuring Modes: Absolute/Preset, Incremental, TIR (with Low / High Storage Recall)

SPC Cables USB, MTI (Digimatic), RS232

Travel Reverse

Auto Off

Floating Zero

Power with Battery (CR2032) or Through Data Cable

Lock Feature and Programmable Lock Combination

User Tolerance Settings (high and low)

Switchable Resolutions .001″, .0005″, .0001″, .000050″ (.02mm, .01mm, .002mm, .001mm)

Inch/Metric

Largest LCD Display in Class

3 Hold Functions: Maximum / Minimum / Freeze

Stem and Back Mounting

200 Measurement Readings can be Stored Inside the Indicator and Viewed on the LCD. Stored Measurement Readings can be Downloaded to a Computer Using the CDI Single Gage Software / USB Cable.

.250″ and .400″ Travel (6.35mm and 10mm)

CE Compliant

Available with custom equations, lcds, nameplates, stems, buttons, IP rating and much more.

Dual Display (Analog and Numeric)

Low battery warning

Programmable ratios at keypad

If this indicators page does not have the specifications or information you are searching please visit the Chicago Dial Indicator company website. You can find their website by Clicking Here.

Chicago Dial Indicator Mini Logic IQ Indicator

MQ3665 Mini Logic IQ Indicator .00005″/.001mm

MQ2665 Mini Logic IQ Indicator .0001″/.002mm

MQ4665 Mini Logic IQ Indicator .0005″/.010mm

MQ3565 Mini Logic IQ Indicator .00005″/.001mm

MQ2565 Mini Logic IQ Indicator .0001″/.002mm

MQ4565 Mini Logic IQ Indicator .0005″/.010mm
