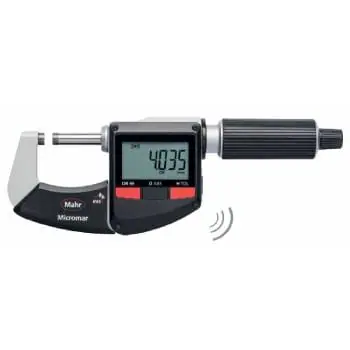

Mahr Micromar 40 EWRi Digital Outside Micrometers – Wireless Data Output
Product Code: 4157100MFGID: 4157100
Brand: Mahr
Product Description
4157100 Mahr Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 0-1″
The Mahr 4157100 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output has the following specifications:
- Measuring Range: 0-1″
- Measuring Range: 0-25mm
- Resolution: 0.01mm/.0005″
- Error limit: 2um
- Parallelism deviation: 2um
- Flatness deviation: 0.6um
Functions:
- RESET (set display to zero)
- ABS (display can be set to zero without losing reference to ORIGIN)
- mm/inch
- ORIGIN (for entering a numerical value)
- LOCK function (key lock)
- TOL (Tolerance and Warning Limits Input)
- HOLD (storage of measured values)
- DATA (data transmission)
- Bidirectional data interface (external output and input option of characteristic values as well as setting of individual lock functions by MarCom Software)
Features:
- High contrast digital display
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- Rapid drive
- Ratchet is integrated in the thimble
- Lacquered steel frame, heat insulated
- Software: MarCom Professional free download: www.mahr.com/ marcom (only for Mahr data cables and
- wireless systems with USB and RS-232 interface)
- Digit height: 10 mm
- Data interface: Integrated Wireless
- Energy supply: Battery life approx. 3 years (approx. 0.5 in wireless mode)
- Battery type: CR 2032 (3V Lithium)
- IP protection category: IP 65
- Package contains: instruction manual, battery, setting values,case
If this micrometers page does not have the specifications or information you are searching please visit the Mahr company website. You can find their website by Clicking Here.
Mahr Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output
- 4157100 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 0-1″
- 4157101 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 1-2″
- 4157102 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 2-3″
- 4157103 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 3-4″
- 4157104 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 4-5″
- 4157105 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 5-6″
- 4157106 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 6-7″
- 4157107 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 7-8″
- 4157115 Micromar 40 EWRi Digital Outside Micrometer – Wireless Data Output: 0-4″
