  • Product Code: #4170033

    Vernier Thread Micrometer - # 4170033

    Measuring Range: 75-100mm

    Error limit G: 5µm

    Price: $749.00 $711.55
    Lowest Price Guaranteed
    Quantity

    Product Description

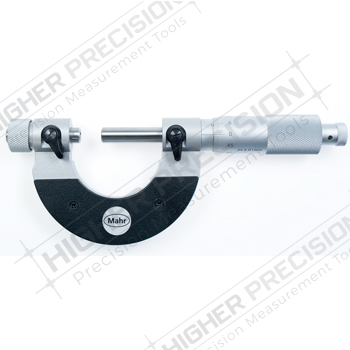

    4170033 Mahr Vernier Thread Micrometer: 75-100mm

    The Mahr 4170033 Vernier Thread Micrometer has the following specifications:

    • Measuring Range: 75-100mm
    • Error limit G: 5µm
    • Readings: 0.01mm
    • Spindle thread pitch: 0.5mm
    • Mounting bores for anvils: 3.5mm

    Features:

    • For measuring pitch, root and outside diameters
    • Hard lacquered steel frame, heat insulated
    • Spindle is hardened throughout, ground and is also provided which a locking device
    • Adjustable anvil
    • Spindle and anvil both have a mounting bore to accommodate inter changeable anvils
    • Flat end surface of the anvil shank rests on a hardened steel ball which is at the bottom of the mounting bore
    • Scales have a satin-chrome finish
    • Supplied with: Case

    Mahr Precision Vernier Thread Micrometers:

    • 4170030 Vernier Thread Micrometer: 0-25mm
    • 4170031 Vernier Thread Micrometer: 25-50mm
    • 4170032 Vernier Thread Micrometer: 50-75mm
    • 4170033 Vernier Thread Micrometer: 75-100mm
    • 4170034 Vernier Thread Micrometer: 100-125mm
    • 4170035 Vernier Thread Micrometer: 125-150mm
    • 4170036 Vernier Thread Micrometer: 150-175mm
    • 4170037 Vernier Thread Micrometer: 175-200mm
  •
