Mitutoyo Outside Micrometers with Extension Anvils – Inch
Product Code: 105-428MFGID: 105-428
Brand: Mitutoyo
Product Description

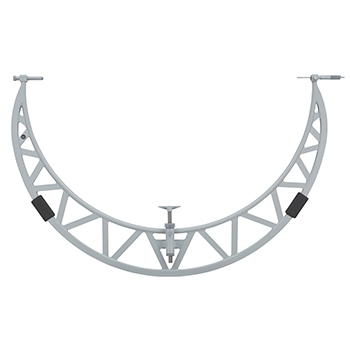

105-428 Mitutoyo Outside Micrometer – With Extension Anvils: 40-44″
The Mitutoyo 105-428 Outside Micrometer – With Extension Anvils has the following specifications:
- Range: 40-44″
- Extension collars: 2″
- Mass: 10kg
Features:
- Wide measuring range with extension anvil collars.
- 50mm spindle stroke.
- With ratchet stop for constant force.
- Supplied with zero-setting standards bar for each range.
- Square and round pipes are combined for light weight and rigid frame (for models over 1000mm range).
- Workpiece stopper (for models over 1000mm range).
- Supplied in a fitted wooden case.
Technical Data:
- Accuracy: ±(6+R/75)μm, R=max. range (mm)
- Graduation: .001″ / 0.01mm
- Flatness: .000052″ / 1.3μm
- Parallelism: [.00016″+.00004 (L/4)”] L=max. range (inch) (2+R/100)μm, R=max. range (mm)
- Measuring faces: Carbide tipped
If this micrometers page does not have the specifications or information you are searching please visit the Mitutoyo company website. You can find their website by Clicking Here.
Mitutoyo Outside Micrometer – With Extension Anvils – Inch
- 105-428 Outside Micrometer – With Extension Anvils: 40-44″
- 105-429 Outside Micrometer – With Extension Anvils” Inch 44-48″
- 105-430 Outside Micrometer – With Extension Anvils: 48-52″
- 105-431 Outside Micrometer – With Extension Anvils: 52-56″
- 105-432 Outside Micrometer – With Extension Anvils: 56-60″
- 105-433 Outside Micrometer – With Extension Anvils: 60-64″
- 105-434 Outside Micrometer – With Extension Anvils: 64-68″
- 105-435 Outside Micrometer – With Extension Anvils: 68-72″
- 105-436 Outside Micrometer – With Extension Anvils: 72-76″
- 105-437 Outside Micrometer – With Extension Anvils: 76-80″
