Mitutoyo 105-435 Outside Micrometer: 68-72″
Product Code: 105-435MFGID: 105-435
Brand: Mitutoyo
Product Description

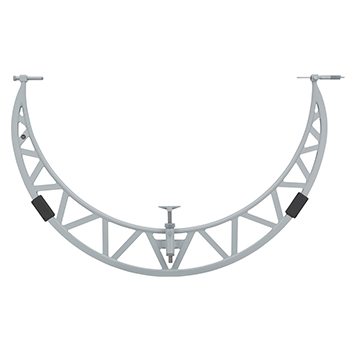

105-435 Mitutoyo Outside Micrometer – With Extension Anvils: 68-72″
The Mitutoyo 105-435 Outside Micrometer – With Extension Anvils has the following specifications:
- Range: 68-72″
- Extension collars: 2″
- Mass: 14.9kg
Features:
- Wide measuring range with extension anvil collars.
- 50mm spindle stroke.
- With ratchet stop for constant force.
- Supplied with zero-setting standards bar for each range.
- Square and round pipes are combined for light weight and rigid frame (for models over 1000mm range).
- Workpiece stopper (for models over 1000mm range).
- Supplied in a fitted wooden case.
Technical Data:
- Accuracy: ±(6+R/75)μm, R=max. range (mm)
- Graduation: .001″ / 0.01mm
- Flatness: .000052″ / 1.3μm
- Parallelism: [.00016″+.00004 (L/4)”] L=max. range (inch) (2+R/100)μm, R=max. range (mm)
- Measuring faces: Carbide tipped
If this micrometers page does not have the specifications or information you are searching please visit the Mitutoyo company website. You can find their website by Clicking Here.
Mitutoyo Outside Micrometer – With Extension Anvils – Inch
- 105-428 Outside Micrometer – With Extension Anvils – Inch 40-44″
- 105-429 Outside Micrometer – With Extension Anvils – Inch 44-48″
- 105-430 Outside Micrometer – With Extension Anvils – Inch 48-52″
- 105-431 Outside Micrometer – With Extension Anvils – Inch 52-56″
- 105-432 Outside Micrometer – With Extension Anvils – Inch 56-60″
- 105-433 Outside Micrometer – With Extension Anvils – Inch 60-64″
- 105-434 Outside Micrometer – With Extension Anvils – Inch 64-68″
- 105-435 Outside Micrometer – With Extension Anvils – Inch 68-72″
- 105-436 Outside Micrometer – With Extension Anvils – Inch 72-76″
- 105-437 Outside Micrometer – With Extension Anvils – Inch 76-80″
