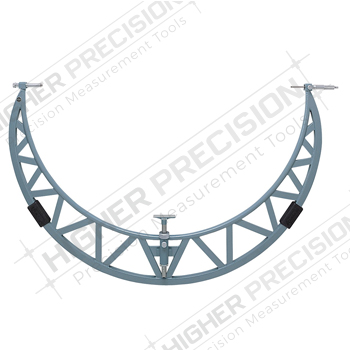

Mitutoyo 105-422 Micrometer Extension Anvils: 1800-2000mm
Product Code: 105-422MFGID: 105-422
Brand: Mitutoyo
Product Description
105-422 Outside Micrometer – with Extension Anvil Collars: 1800-2000mm
The Mitutoyo 105-422 Outside Micrometer has the following specifications:
- Range: 1800-2000mm
- Extension Collars: 50mm, 100mm
- Accuracy: ±(6+R/75)Ìm, R=max. range (mm)
- Mass(g): 22.76
Features:
- Wide measuring range with extension anvil collars.
- 50mm spindle stroke.
- With Ratchet Stop for constant force.
- Supplied with zero-setting standards bar for each range.
- Square and round pipes are combined for light weight and rigid frame (for models over 1000mm range).
- Workpiece stopper (for models over 1000mm range).
- Supplied in a fitted wooden case.
Technical Data
- Graduation: 0.01mm
- Flatness: 1.3µm
- Parallelism: (2+R/100)µm, R=max. range (mm)
- Measuring faces: Carbide tipped
Mitutoyo Outside Micrometers – with Extension Anvil Collars – Metric:
- 105-103 Outside Micrometer: 500-600mm
- 105-104 Outside Micrometer: 600-700mm
- 105-105 Outside Micrometer: 700-800mm
- 105-106 Outside Micrometer: 800-900mm
- 105-107 Outside Micrometer: 900-1000mm
- 105-408 Outside Micrometer: 1000-1100mm
- 105-409 Outside Micrometer: 1100-1200mm
- 105-418 Outside Micrometer: 1000-1200mm
- 105-410 Outside Micrometer: 1200-1300mm
- 105-411 Outside Micrometer: 1300-1400mm
- 105-419 Outside Micrometer: 1200-1400mm
- 105-412 Outside Micrometer: 1400-1500mm
- 105-413 Outside Micrometer: 1500-1600mm
- 105-420 Outside Micrometer: 1400-1600mm
- 105-414 Outside Micrometer: 1600-1700mm
- 105-415 Outside Micrometer: 1700-1800mm
- 105-421 Outside Micrometer: 1600-1800mm
- 105-416 Outside Micrometer: 1800-1900mm
- 105-417 Outside Micrometer: 1900-2000mm
- 105-422 Outside Micrometer: 1800-2000mm
