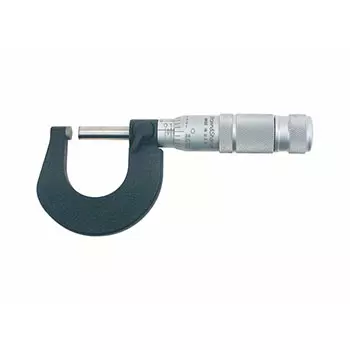

Brown and Sharpe TESA 00180071 Vernier Micrometer
Product Code: 00180071MFGID: 00180071
Brand: Brown and Sharpe
Product Description
00180071 Brown and Sharpe TESA Vernier Micrometer: 1-2″
The Brown and Sharpe TESA 00180071 Vernier Micrometer has the following specifications:
- Measuring Range: 1-2″
- Resolution: .0001″
- Max. Perm. Errors: .00015″
- Dimension A: 146.8mm
- Dimension B: 63.3mm
- Dimension C: 6.5mm
- Dimension D: 28.75mm
Specification:
- Measuring Force: 10 N
- Units in
- Standard ISO 3611
- Resolution .0001 in
- Material Inserts: tungsten carbide
- Thread pitch .025 in
- Measuring face(s) Ø .25 in
- Included in delivery Micrometer
- Measurement report
- Declaration of conformity
Accessories:
- 00160201 Micrometer stand with 16 mm clamp aperture
- 072110123 Micrometer stand with 20 mm clamp aperture
- 02510000 Set of optical flats, 12 ÷ 12,375 mm
- 02510100 Set of optical flats, 27 ÷ 27,335 mm
- 02510200 Set of optical flats, 52 ÷ 52,335 mm
- 02510300 Set of optical flats, 77 ÷ 77,335 mm
If this micrometers page does not have the specifications or information you are searching please visit the Brown and Sharpe TESA company website. You can find their website by Clicking Here.
Brown and Sharpe TESA Vernier Micrometer – Inch
