INSIZE Large Depth of Field 3D Measuring Microscope
Product Code: 5324-K210MFGID: 5324-K210
Brand: INSIZE
Request Quote
Product Description

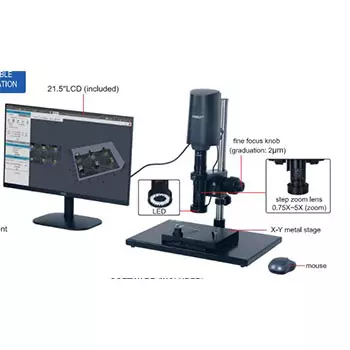

5324-K210 INSIZE Large Depth of Field 3D Measuring Microscope: 1/2″ CMOS
The INSIZE 5324-K210 Large Depth of Field 3D Measuring Microscope has the following specifications:
- Sensor: 1/2″ CMOS
- Pixel: 2M
- Resolution: 1920×1080
- Magnification: 100~750X
- Z-axis: 2mm
- View field: 0.6×0.32~4.5×2.5mm
- Working distance: 30~40mm
- Frame rate: 60fps
- output: HDMI/LAN
- Power supply: power adapter
- Dimension: 570x300x430mm
- Weight: 10kg
Features:
- Auto focus camera
- Built-in motor. automatic focus stacking
- PDF report can be exported
- Fast generation of large depth of field images
- Plane measurement and profile height measurement
