INSIZE Monocular Toolmaker Microscopes
Product Code: ISD-VMM205DMFGID: ISD-VMM205D
Brand: INSIZE
Product Description

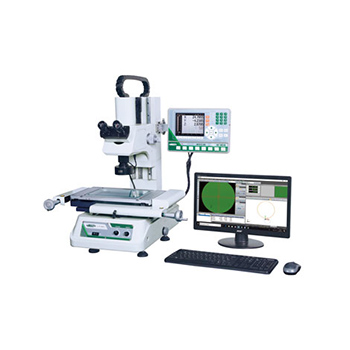

ISD-VMM205D INSIZE Monocular Toolmaker Microscope: 5.91×3.94″
The INSIZE ISD-VMM205D Monocular Toolmaker Microscope has the following specifications:
- X/Y axis Travel: 5.91×3.94″
- Z axis Travel: 5.91″
- Metal Stage Size: 13.94×8.98″
- Glass Stage Size: 8.27×6.30″
- Resolution: of X/Y/Z axis: .00002″
- Accuracy of X/Y axis: (137.8+10L)um (L is the measuring length in mm)
- Repeatability: .00008″
- Camera: 1/3″ color CCD, 0.3M pixel
- Optical magnification: 30X
- Image magnification: 114X (on 19″ monitor)
- Illumination: surface and contour with adjustable LED
- Max. weight of workpiece: 25kg
- Power supply: 100V~240V, 50/60Hz
- Operating system: Windows 7/8/10
- Drive method: manual
- Dimension: 21.30×26.30×33.46″
- Weight: 100kg
Features:
- The horizontal and vertical scale lines are used for length measurement, the graduation is .008″. The two diagonals scale lines are used for diameter measurement, the graduation is .04″ (when using the 1X objective).
If this microscopes page does not have the specifications or information you are searching please visit the INSIZE company website. You can find their website by Clicking Here.
INSIZE Monocular Toolmaker Microscopes
- ISD-VMM205D Monocular Toolmaker Microscope 5.91×3.94″
- ISD-VMM215D Monocular Toolmaker Microscope 7.87×3.94″
- ISD-VMM225D Monocular Toolmaker Microscope 9.84×5.91″
- ISD-VMM235D Monocular Toolmaker Microscope 11.81×7.87″
